点击放大查看

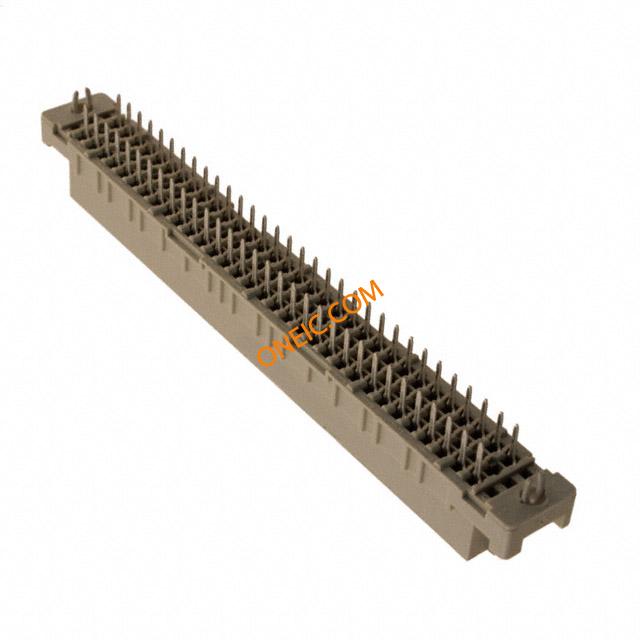

09034646825

Manufacturer	HARTING Technology Group
Description	DIN-SIGNAL C064FS-4,5C1-2-CLIP DIN 41612 Connectors 64P DINSIGNAL TYPE C STRAIGHT SOLDER PIN Connector DIN-Signal solder 64-way f ConnectorDIN-Signalsolder64-wayf Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插座, 焊接端接
Category	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

零件号别名	03 09 09-03-464-6825 464 6825	标准包装数量	1
工厂包装数量	100

合规参数

RoHS

Compliant

材料阻燃等级

UL94 V-0

电气参数

接触电阻

20mΩ

最大额定电流

机械参数

间距	0.100" (2.54mm)	包装方式	Bulk
方向	直	端接方式	Solder
安装类型	Through Hole	连接器类型	Receptacle, Female Sockets
接触镀层	Gold over Nickel	排数	3
触头材料	Copper Alloy	壳体材料	Thermoplastic
端接排数	a/c	触点数	64
位数	96	绝缘材料 - 材质	Thermoplastic, Glass Filled

产品信息

类型	C	样式	C
连接器性别	Female	系列	09 03
产品特性	Mounting Clips	等级代码	C2
CAD图纸	3D CAD Model	插座类型与数量	A/c
加载位置数	64

环境参数

额定等级	C2	级别、等级	2
工作温度	+125°C
