点击放大查看

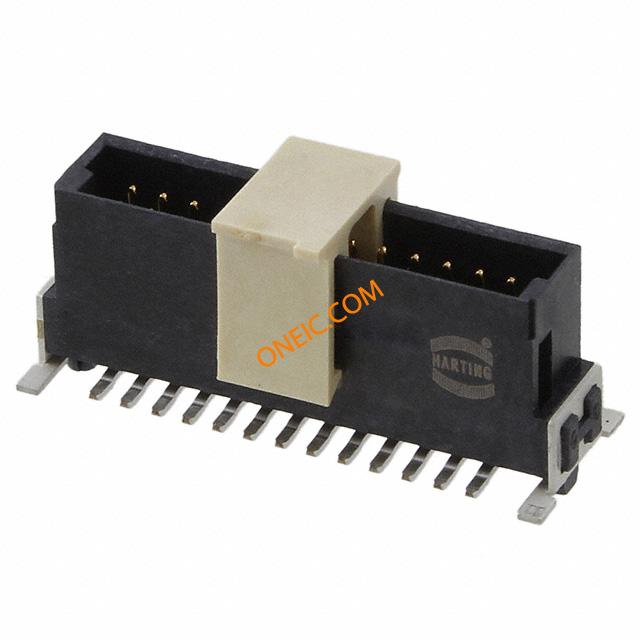

15120262601000
| Manufacturer | |
| Description | CONN HEADER 26POS 1.27MM SMD Harting Har-Flex Series 1.27mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination Board to Board & Mezzanine Connectors HAR-FLEX STRT MALE 26P 3.25 HGT PL1 har-flexstrtmale3.25mm26pPL1 Harting Har-Flex 系列 1.27mm节距 26路 (2排) 直 PCB 针座, 焊接端接 , 表面安装 |
| Category |
Business
| Other Names | 1195-3373-2 | Part # Aliases | 015120 015120-26-260-1000 1000 26 260 |
| Standard Package | 280 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Mechanical
| Color | Black | Pitch | 0.050" (1.27mm) |
| Packaging | Tape & Reel (TR) | Orientation | 直 |
| Row Spacing | 0.050" (1.27mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Surface Mount |
| Connector Type | Header, Shrouded | Number of Rows | 2 |
| Stacking Method | 3.25 mm | Contact Material | Copper Alloy |
| Termination Rows | 焊接 | Termination Style | SMD |
| Number of Contacts | 26 | Number of Positions | 26 |
| Contact Length - Mating | 0.157" (4.00mm) | ||
Product Info
| Type | Board to Board | Series | Har-Flex |
| Coverage | 覆盖 | Features | Board Guide, Solder Retention |
| Product Type | Headers | Number of Positions Loaded | All |
