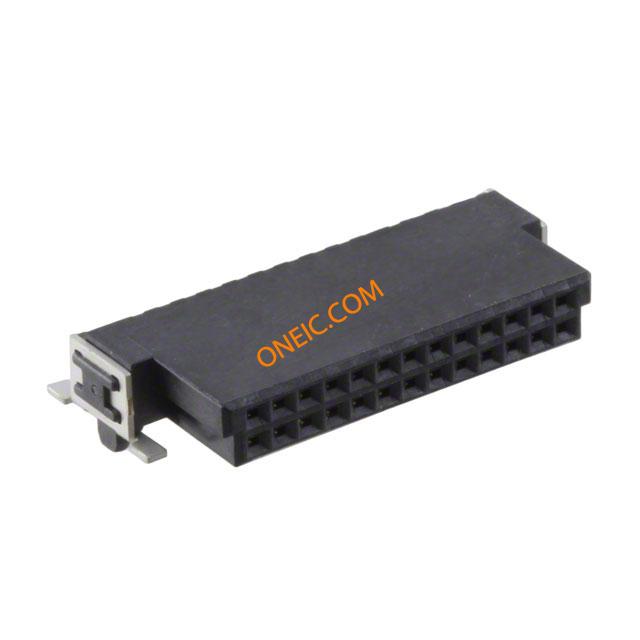

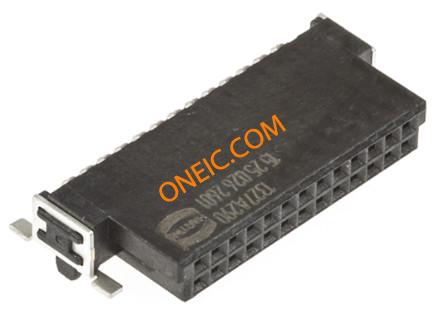

15250262601000
| Manufacturer | |
| Description | CONN RECPT 26POS 1.27MM R/A har-flex female right angle 26 way Board to Board & Mezzanine Connectors HAR-FLEX R/A FEMALE 26P HAR-FLEXR/AFEMALE26P Harting Har-Flex 系列 2行 26路 直角 1.27mm节距 表面贴装 印刷电路板插座, 线对板 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 1195-3417-2 | Part # Aliases | 015250 015250-26-260-1000 1000 26 260 |
| Standard Package | 560 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current Rating (Max) | 0.8A | ||
Mechanical
| Pitch | 0.050" (1.27mm) | Packaging | Tape & Reel (TR) |
| Orientation | 直角 | Row Spacing | 0.050" (1.27mm) |
| Termination | Solder | Contact Type | Female Socket |
| Mounting Type | Surface Mount, Right Angle | Connector Type | Receptacle |
| Number of Rows | 2 | Termination Rows | 焊接 |
| Termination Style | SMD | Number of Contacts | 26 |
| Number of Positions | 26 | ||
Product Info
| Type | Wire to Board | Series | Har-Flex |
| Features | Board Guide, Solder Retention | Product Type | Receptacles |
| Number of Positions Loaded | All | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

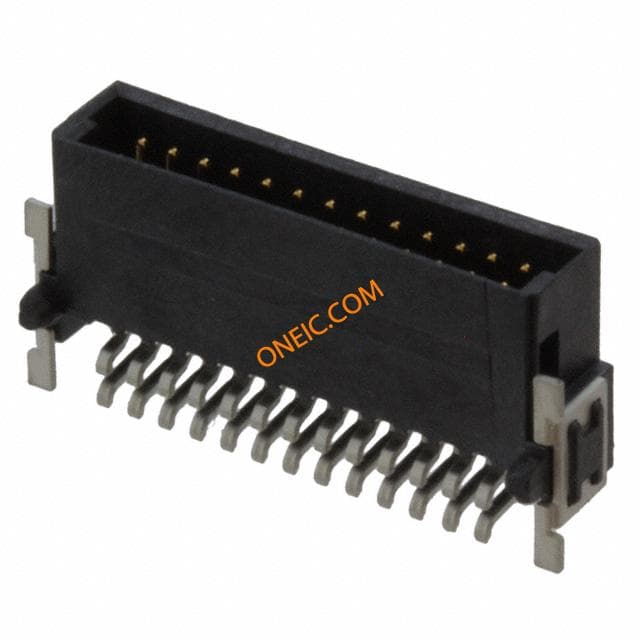

15150262601000
Harting
CONN HEADER 26POS 1.27MM R/A har-flex male right angle 26 way HAR-FLEXR/AMALE26P Harting Har-Flex 系列 1.27mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 800mA , 表面安装
$7555.6840
Details
15110262601000
Harting
CONN HEADER 26POS 1.27MM SMD Harting Har-Flex Series 1.27mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination Board to Board & Mezzanine Connectors HAR-FLEX STRT MALE 26P 1.75MM HGT PL1 har-flexstrtmale1.75mm26pPL1 Harting Har-Flex 系列 1.27mm节距 26路 (2排) 直 PCB 针座, 焊接端接 , 表面安装
$4569.4640
Details

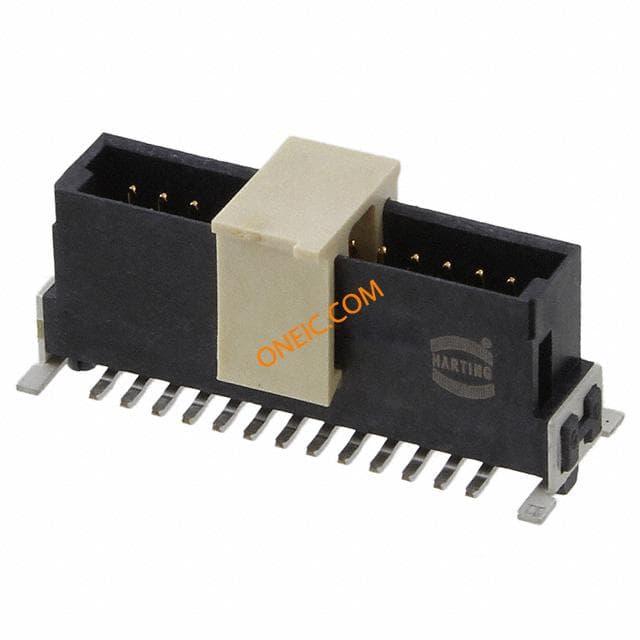

15120262601000
