点击放大查看
15150262601000
| Manufacturer | |
| Description | CONN HEADER 26POS 1.27MM R/A har-flex male right angle 26 way HAR-FLEXR/AMALE26P Harting Har-Flex 系列 1.27mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 800mA , 表面安装 |
| Category |
Business
| Other Names | 1195-3384-2 | Standard Package | 560 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current Rating (Max) | 0.8A | ||
Mechanical
| Color | Black | Pitch | 0.050" (1.27mm) |
| Packaging | Tape & Reel (TR) | Orientation | 直角 |
| Row Spacing | 0.050" (1.27mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header, Shrouded | Number of Rows | 2 |
| Termination Rows | 焊接 | Number of Contacts | 26 |
| Number of Positions | 26 | ||
Product Info
| Type | Wire to Board | Series | Har-Flex |
| Coverage | 覆盖 | Features | Board Guide, Solder Retention |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
15290265502000
Harting
CONN IDC FEMALE 26POS 1.27MM

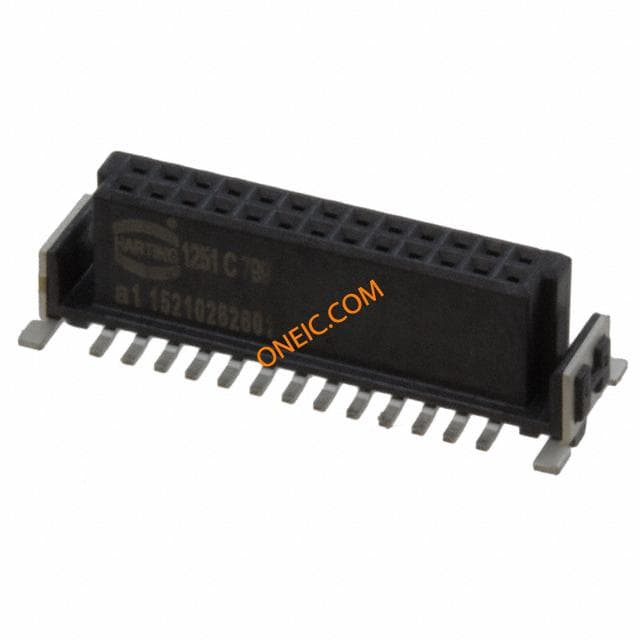

15210262601000
Harting
CONN RECPT 26POS 1.27MM SMD Harting Har-Flex Series 1.27mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination Board to Board & Mezzanine Connectors HAR-FLEX STRT FEM 26P 6.25M HGT PL1 HAR-FLEXSTRTFEMALE26P6.25MHGTPL1 Harting Har-Flex 系列 2行 26路 直 1.27mm节距 表面贴装 印刷电路板管座, 线对板

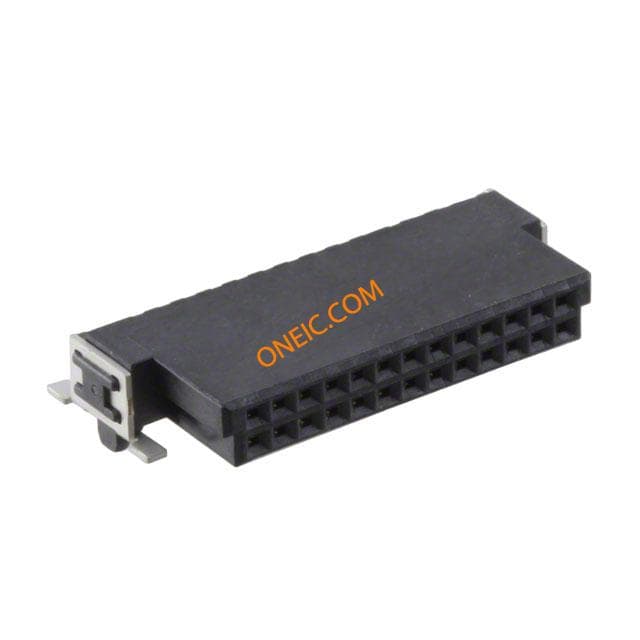

15250262601000
Harting
CONN RECPT 26POS 1.27MM R/A har-flex female right angle 26 way Board to Board & Mezzanine Connectors HAR-FLEX R/A FEMALE 26P HAR-FLEXR/AFEMALE26P Harting Har-Flex 系列 2行 26路 直角 1.27mm节距 表面贴装 印刷电路板插座, 线对板

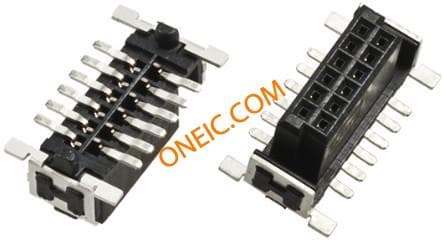

15220262601000
Harting
CONN RECPT 26POS 1.27MM SMD Harting Har-Flex Series 1.27mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination Board to Board & Mezzanine Connectors HAR-FLEX STRT FEM 26P 9.05MM HGT PL1 HAR-FLEXSTRTFEMALE26P9.05MMHGTPL1 Harting Har-Flex 系列 2行 26路 直 1.27mm节距 表面贴装 印刷电路板管座, 线对板
