点击放大查看

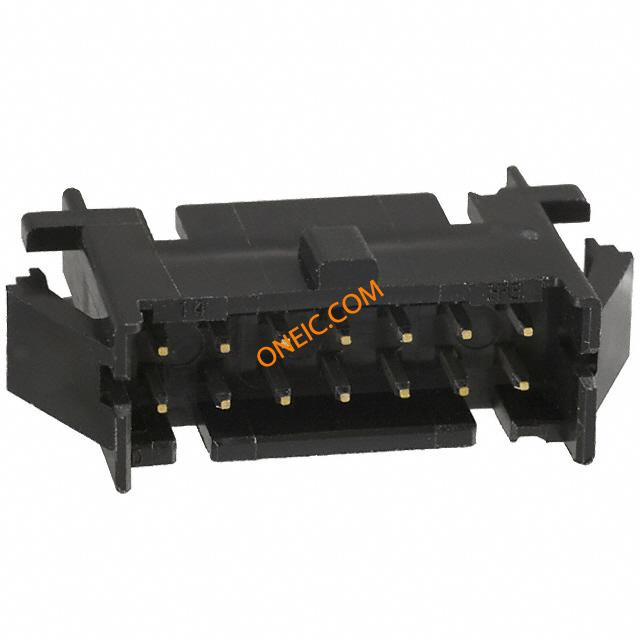

DF11-14DEP-2A
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング 2MM M/M ADAPTER 14P TIN W/PNL LOCK CONN ADAPTER PLUG/PLUG 14POS 2MM Headers & Wire Housings 2MM M/M ADAPTER 14P TIN W/PNL LOCK |
| Category |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 开关功能 | Panel Lock |
| 最大额定电流 | 2 A | ||
机械参数
| 间距 | 0.079" (2.00mm) | 包装方式 | Bag |
| 排间距 | 0.079" (2.00mm) | 安装类型 | Panel Mount, Snap-In |
| 接触镀层 | Tin | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Polyamide |
| 第一触头极性 | Pin (Male) | 触点数 | 14 |
| 位数 | 14 | ||
产品信息
| 类型 | Adapters | 系列 | DF11 |
| 产品子类型 | Connectors | 转换端（适配器端） | Plug, Male Pins |
| 转换自（适配器端） | Plug, Male Pins | ||
