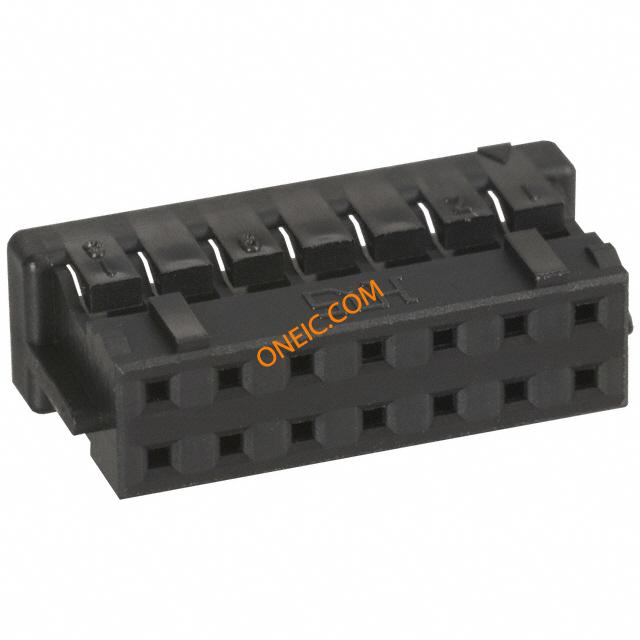

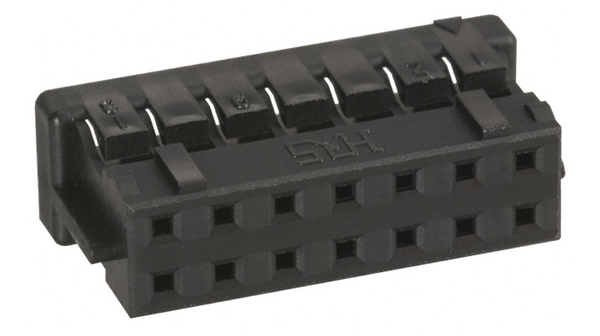

DF11-14DS-2C

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 2MM RECEPT HOUSING 14P DUALROW CRIMP CONN SOCKET 14POS 2MM DUAL CRIMP DF11 Crimp Housing, 14w, 2mm Conn Housing PL 14 POS 2mm Crimp ST Cable Mount Bag Crimp housing Pitch2 mm Poles 2 x 7 DF11, DF11-14DS-2C, Hirose Hirose DF11 系列 2 行 2mm 节距 14 路直母电缆安装 PCB 壳体
Category	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	100
工厂包装数量	100

合规参数

RoHS

Compliant

材料阻燃等级

UL 94 V-0

电气参数

额定电压	250 V	极数	2 x 7
最大额定电流	2 A	最小供电电压	250VAC
连接器类型 - 电压输入	Crimp

机械参数

颜色	Black	深度	7.3mm
间距	0.079" (2.00mm)	宽度	5mm
高度	5 mm	长度	16mm
包装方式	Bulk	壳体颜色	12
导线线规	22-30 AWG	方向	直
排间距	0.079" (2.00mm)	触点形式	Female Socket
触头类型	Female Socket	引脚间距	0.079" (2.00mm)
外壳颜色	Black	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	排数	2
壳体材料	PA	总长度	16 mm
端接样式	Through Hole	第一触头极性	Socket (Female)
触点数	14	接触件端接	Crimp
位数	14

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	Male	系列	DF11
已删除	Compliant	放大器类型	16
连接方式	Wire-Board	输出配置	Free Hanging (In-Line)
适用产品/相关产品	Double-Row Connector

环境参数

工作温度

-30C to 85C

Documents & Media

PDF Document

DF11 Series

相关型号

DF11-14DP-2DS(24)

Hirose Connector

Headers & Wire Housings 2MM R/A PCB HEADER 14P DR THRU-HOLE TIN CONN HEADER 14POS 2MM RT ANG TIN Hirose DF11 Series 2mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 2A DF11R/APinhdr,ThroughHole,14w Pin header, angled Pitch2 mm Poles 2 x 7 DF11, DF11-14DP-2DS(24), Hirose Hirose DF11 系列 2mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 2A , 通孔

¥1.8768

详情

DF11-30SCF

Hirose Connector

Headers & Wire Housings FEMALE CONTACT TIN 30AWG REEL CONN SOCKET 30AWG CRIMP TIN

¥0.2712

详情

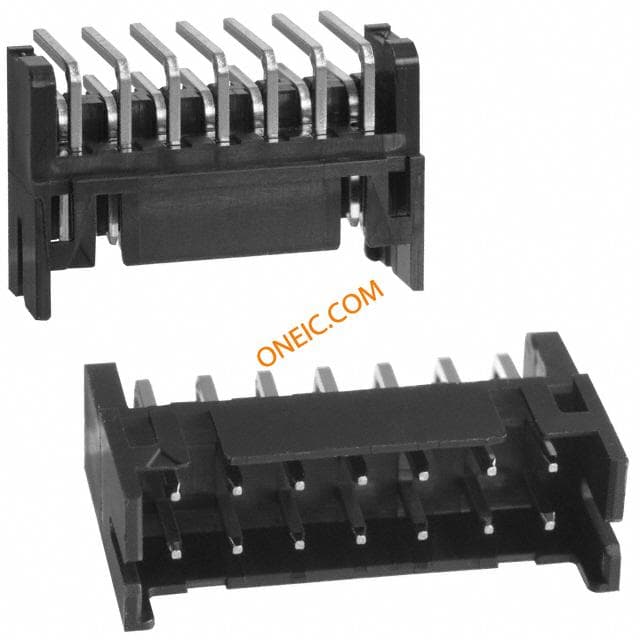

DF11-14DP-2DS(22)

Hirose Connector

ヘッダ & ワイヤハウジング DBL ROW PIN HDR CONN 14 CONT RA THRU HOLE CONN HEADER 14POS 2MM RT ANG TIN

详情

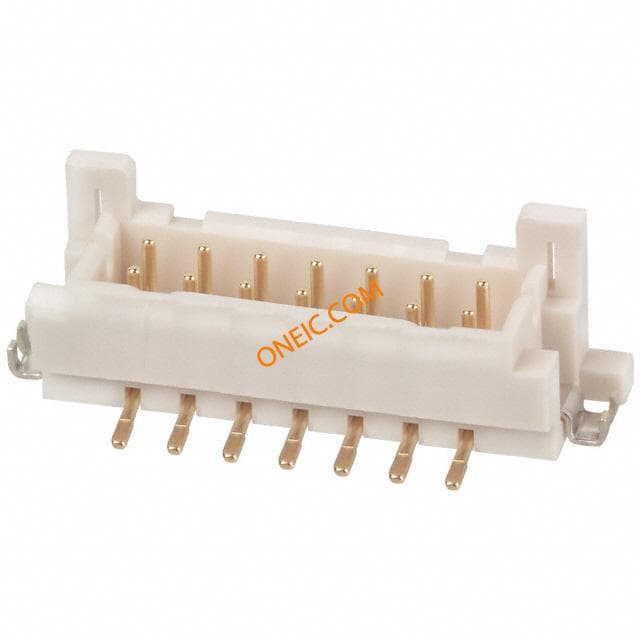

DF11G-14DP-2V(50)

Hirose Connector

Headers & Wire Housings 2MM V PCB HEADER 14P DR SMT GLD CONN HEADER 14POS 2MM SMD GOLD Conn Shrouded Header HDR 14 POS 2mm Solder ST SMD

¥7.0720

详情

DF11-2428SCF

Hirose Connector

Headers & Wire Housings FEMALE CONTACT TIN 24-28AWG REEL CONN SOCKET 24-28AWG CRIMP TIN

¥0.3946

详情

DF11-14DP-2DS(52)

Hirose Connector

ヘッダ & ワイヤハウジング 2MM R/A PCB HEADER 14P DR THRU-HOLE GLD CONN HEADER 14POS 2MM R/A GOLD Box pin Header 2mm pitch RA gold 7+7 way Headers & Wire Housings 2MM R/A PCB HEADER 14P DR THRU-HOLE GLD Hirose DF11 系列 2mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 2A , 通孔

¥5.3584

详情

DF11-30SCFA

Hirose Connector

ヘッダ & ワイヤハウジング FEMALE CONTACT GLD 30AWG REEL CONN SOCKET 30AWG CRIMP GOLD CONN SOCKET 30AWG CRIMP TIN Headers & Wire Housings FEMALE CONTACT GLD 30AWG REEL DF11-30SCFA

¥0.6583

详情

DF11-2428SCFA

Hirose Connector

ヘッダ & ワイヤハウジング FEMALE CONTACT GLD 24-28AWG REEL CONN SOCKET 24-28AWG CRIMP GOLD Headers & Wire Housings FEMALE CONTACT GLD 24-28AWG REEL

¥0.6583

详情

DF11-22SC

Hirose Connector

ヘッダ & ワイヤハウジング FEMALE CONTACT TIN 22AWG LOOSE CONN SOCKET 22AWG CRIMP TIN DF11 Crimp terminal AWG 22 Headers & Wire Housings FEMALE CONTACT TIN 22AWG LOOSE DF11-22SC DF11CrimpterminalAWG22 Crimp socket AWG22 Female 22 AWG, DF11-22SC, Hirose Hirose DF11 系列母压接接线端子, 压接, 镀锡触点

¥0.2856

详情

DF11-22SCF

Hirose Connector

Headers & Wire Housings FEMALE CONTACT TIN 22AWG REEL CONN SOCKET 22AWG CRIMP TIN

¥0.4930

详情

DF11-30SCA

Hirose Connector

ヘッダ & ワイヤハウジング FEMALE CONTACT GLD 30AWG LOOSE CONN SOCKET 30AWG CRIMP GOLD Crimp Contact gold plated 30 AWG loose Headers & Wire Housings FEMALE CONTACT GLD 30AWG LOOSE DF11-30SCA Hirose DF11 系列母压接接线端子, 压接, 镀金触点

¥0.8851

详情

DF11-2428SCA

Hirose Connector

ヘッダ & ワイヤハウジング FEMALE CONTACT GLD 24-28AWG LOOSE CONN SOCKET 24-28AWG CRIMP GOLD Crimp contact,socket,DF11,AWG 24-28 Headers & Wire Housings FEMALE CONTACT GLD 24-28AWG LOOSE DF11-2428SCA Hirose DF11 系列母压接接线端子, 压接, 镀金触点

¥1.0745

详情

DF11GZ-14DP-2V(20)

Hirose Connector

ヘッダ & ワイヤハウジング 2MM V PCB HEADER 14P DR SMT TIN CONN HEADER 14POS 2MM SMD TIN Headers & Wire Housings 2MM V PCB HEADER 14P DR SMT TIN Conn Shrouded Header HDR 14 POS 2mm Solder ST SMD

¥3.9780

详情

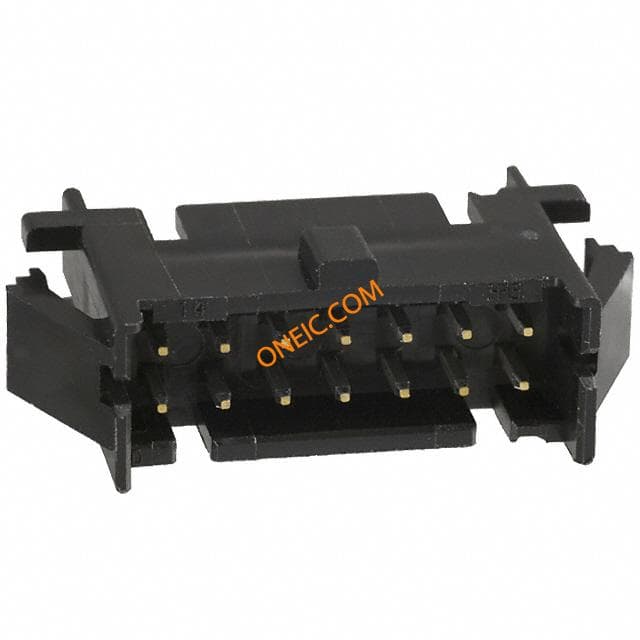

DF11-14DEP-2A

Hirose Connector

ヘッダ & ワイヤハウジング 2MM M/M ADAPTER 14P TIN W/PNL LOCK CONN ADAPTER PLUG/PLUG 14POS 2MM Headers & Wire Housings 2MM M/M ADAPTER 14P TIN W/PNL LOCK

¥2.7880

详情

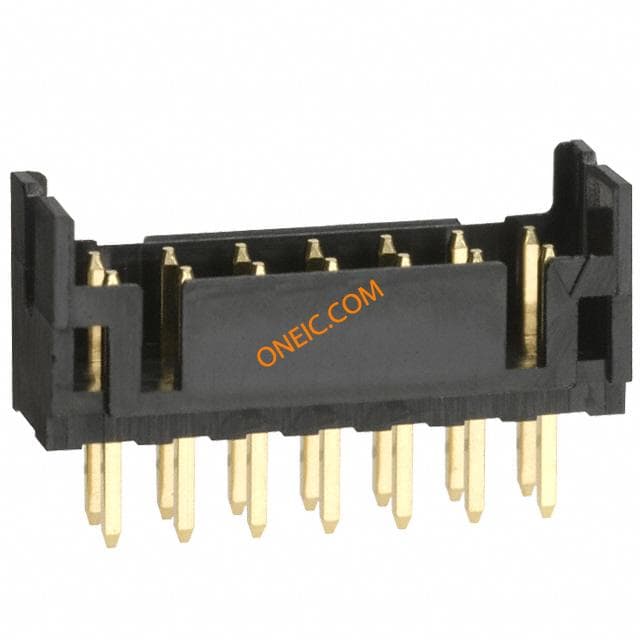

DF11-14DP-2DSA(01)

Hirose Connector

ヘッダ & ワイヤハウジング 2MM V PCB HEADER 14P DR THRU-HOLE GLD CONN HEADER 14POS 2MM PCB GOLD Headers & Wire Housings 2MM V PCB HEADER 14P DR THRU-HOLE GLD Conn Shrouded Header HDR 14 POS 2mm Solder ST Thru-Hole Bag

¥4.3452

详情

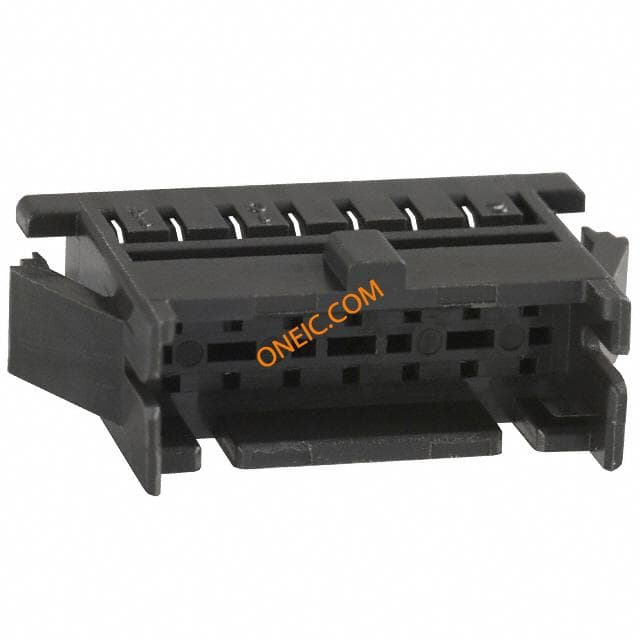

DF11-14DEP-2C
