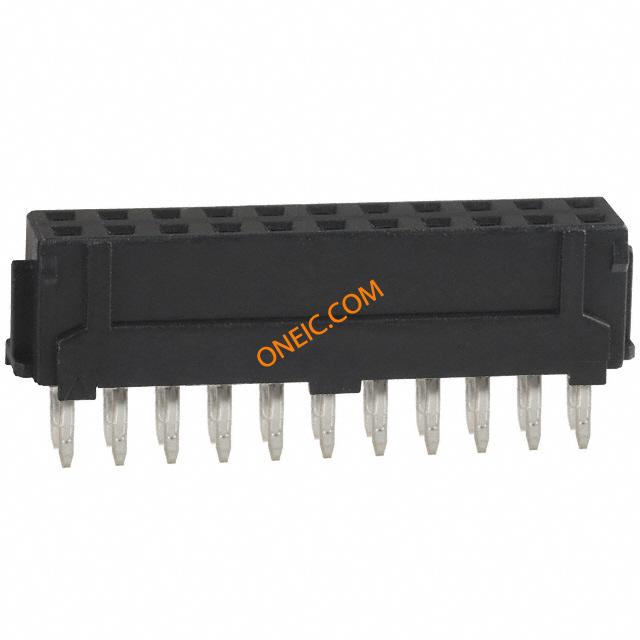

DF11-22DS-2DSA(06)

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 22P F STRT SCKT BD MNT,THRU HL AU CONN RECEPT 22POS 2MM PCB GOLD
Category	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	100
工厂包装数量	100

合规参数

RoHS

RoHS Compliant

电气参数

额定电压

30 V

绝缘电阻

1000 MOhms

机械参数

颜色	Black	间距	0.079" (2.00mm)
包装方式	Bag	排间距	0.079" (2.00mm)
端接方式	Press-Fit	触头类型	Female Socket
安装类型	Straight	连接器类型	Receptacle
接触镀层	Gold	安装样式	Through Hole
排数	2	触头材料	Brass
壳体材料	Polyamide (PA)	端接样式	Solder
第一触头极性	Socket (Female)	触点数	22
位数	22

产品信息

系列	DF11	产品子类型	Receptacles / Sockets - Housings
加载位置数	All

环境参数

工作温度

- 30 C to + 85 C

Documents & Media

PDF Document

e54305002.pdf

PDF Document

DF11 Series
