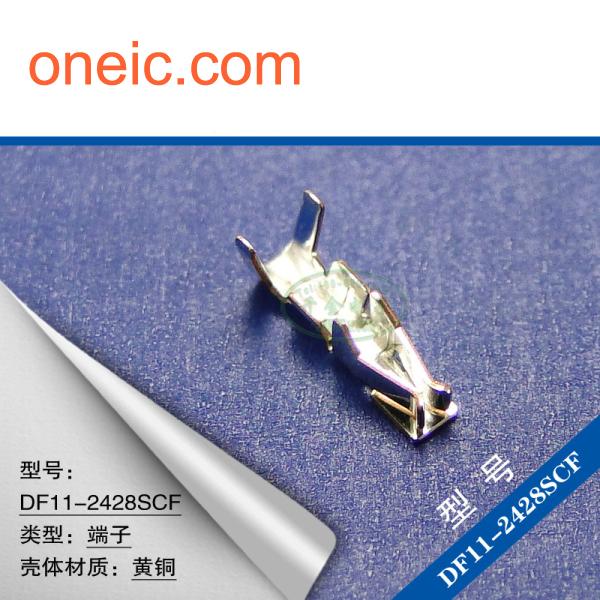

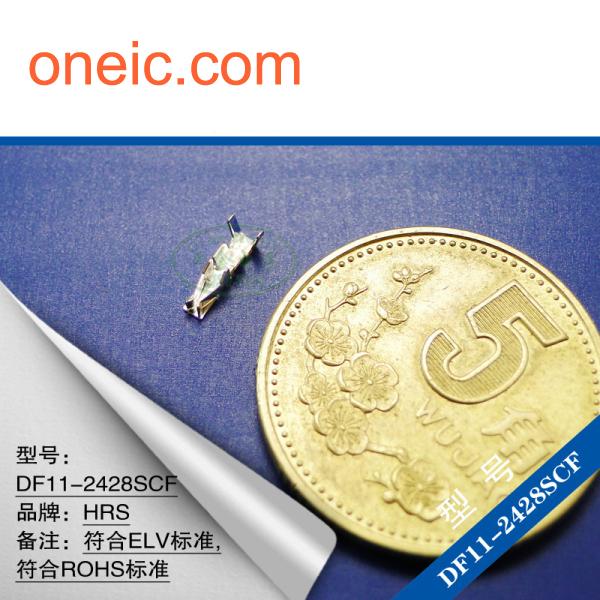

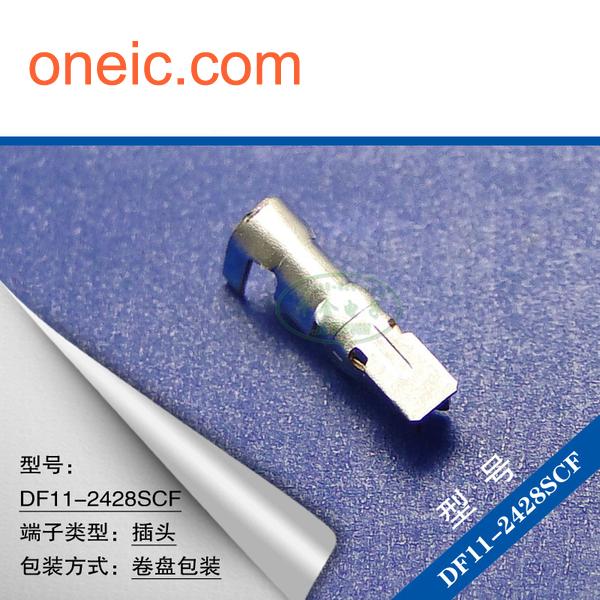

DF11-2428SCF

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings FEMALE CONTACT TIN 24-28AWG REEL CONN SOCKET 24-28AWG CRIMP TIN
Category	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	H1504CT	产品类别	Headers & Wire Housings
标准包装数量	10,000	工厂包装数量	10000

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

额定电压

250 V

最大额定电流

2 A

机械参数

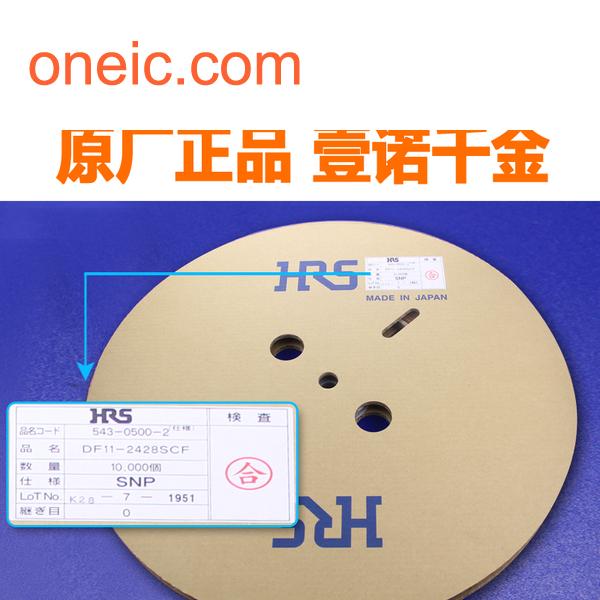

包装方式	Tape & Reel (TR)	导线线规	24-28 AWG
重量（g）	6.8	插针或插孔	Socket
接触镀层	Tin	触头材料	Phosphor Copper
端接样式	Crimp	第一触头极性	Socket (Female)
接触件端接	Crimp

产品信息

名称	端子	单位	PCS
系列	DF11	数量	50000.0
产品子类型	Contacts	制造国家	日本
最小起订量	1

Documents & Media

PDF Document

DF11 Series

PDF Document

e54305002.pdf

相关型号

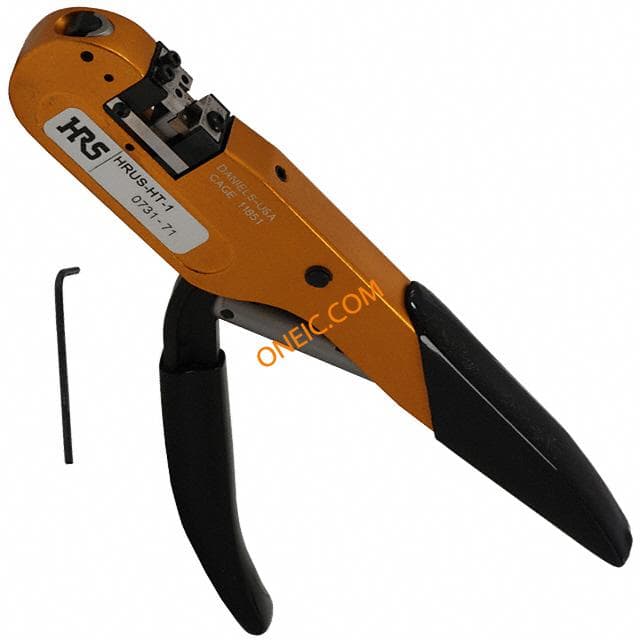

DF11-TA2428HC/US
