点击放大查看

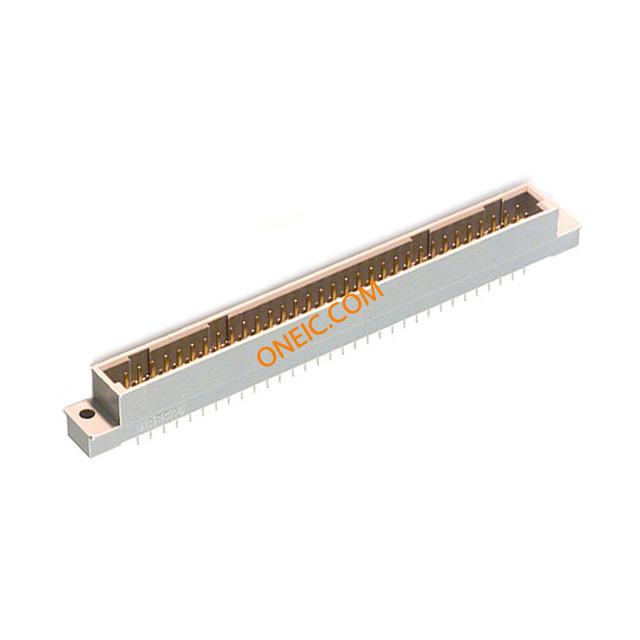

PCN10-64P-2.54DSA(72)
| Manufacturer | |
| Description | DIN 41612 コネクタ DIN 41612 HDR 64 POS 2.54mm Solder ST Th CONN DIN HEADER 64POS DUAL STR DIN 41612 Connectors DIN 41612 HDR 64 POS 2.54mm Solder ST Th Conn DIN 41612 HDR 64 POS 2.54mm Solder ST Thru-Hole |
| Category |
商业参数
| 产品类别 | DIN 41612 Connectors | 标准包装数量 | 15 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 300 V | 接触电阻 | 20 mohm |
| 最大额定电流 | 2A | 最小供电电压 | 300VAC |
机械参数
| 深度 | 8.6 mm | 间距 | 0.100" (2.54mm) |
| 高度 | 11.6 mm | 包装方式 | Tray |
| 端接方式 | Solder | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Header, Male Pins |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Through Hole |
| 触点数 | 64 | 位数 | 64 |
| 绝缘材料 - 材质 | Polybutylene Terephthalate (PBT) | 接触镀层厚度 | 8µin (0.20µm) |
产品信息
| 类型 | B | 样式 | B |
| 连接器性别 | HDR | 系列 | PCN10 |
| 已删除 | Compliant | 产品子类型 | Headers |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 85°C | ||
