PCN10C-64S-2.54DSA(72)
| Manufacturer | |
| Description | DIN 41612 Connectors DIN REC 64P DUAL STR CONN DIN RECEPT 64POS DUAL STR Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 30 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 300 V | 最大额定电流 | 2 A |
机械参数
| 间距 | 2.54 mm | 包装方式 | Tray |
| 端接方式 | Solder | 安装类型 | Straight |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Through Hole |
| 触点数 | 64 | 位数 | 64 |
| 绝缘材料 - 材质 | Polybutylene Terephthalate (PBT) | 接触镀层厚度 | 8µin (0.20µm) |
产品信息
| 类型 | B | 样式 | B |
| 系列 | PCN10 | 已删除 | Compliant |
| 产品子类型 | Receptacles | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 85°C | ||
Documents & Media
PDF Document
PDF Document
相关型号
PCN10-64P-2.54DSA(72)
Hirose Connector
DIN 41612 コネクタ DIN 41612 HDR 64 POS 2.54mm Solder ST Th CONN DIN HEADER 64POS DUAL STR DIN 41612 Connectors DIN 41612 HDR 64 POS 2.54mm Solder ST Th Conn DIN 41612 HDR 64 POS 2.54mm Solder ST Thru-Hole
¥39.5849
详情

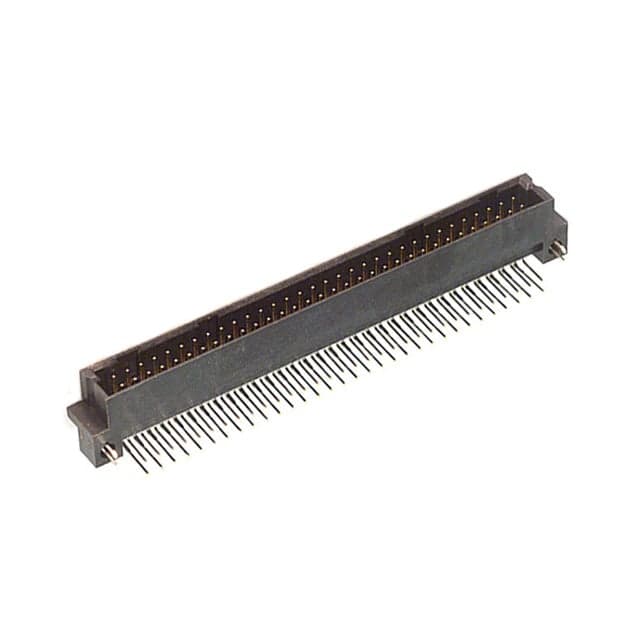

PCN10MC-64P-2.54DS(72)
Hirose Connector
DIN 41612 Connectors DIN 41612 HDR 64 POS 2.54mm Solder RA Th CONN DIN HEADER 64POS 2ROW R/A
¥29.6480
详情

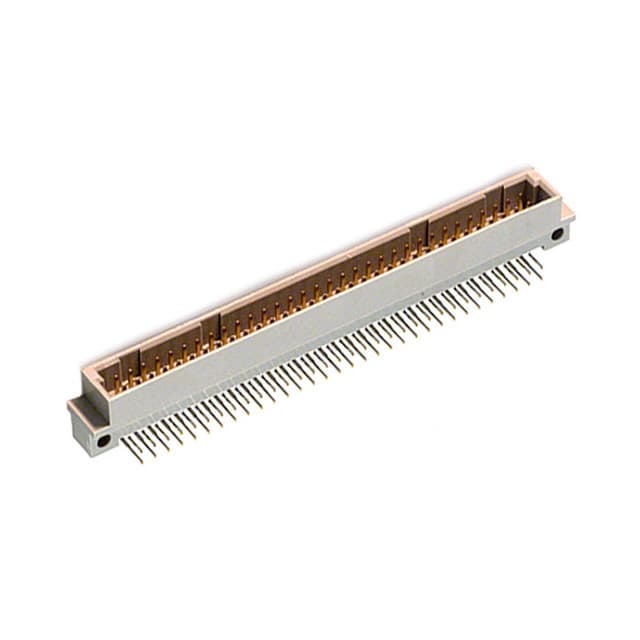

PCN10-64P-2.54DS(72)
