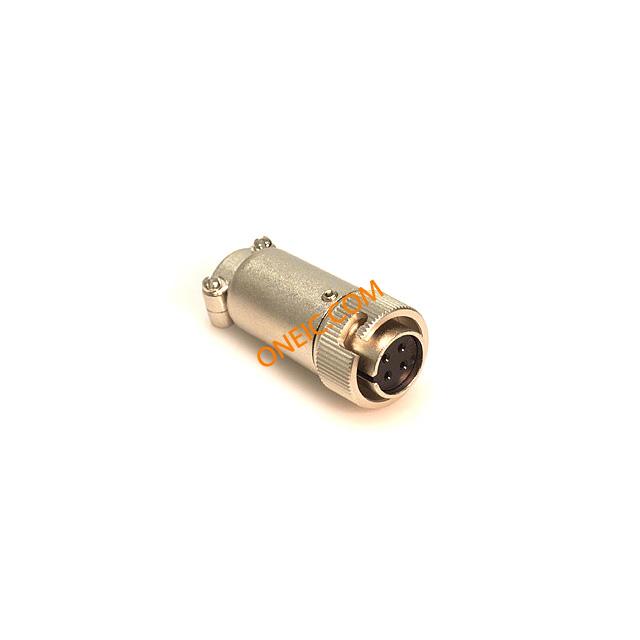

RM12BPE-4S(71)
| Manufacturer | |
| Description | Standard Circular Connector PLUG 4P W/SOC INSERT CONN PLUG 4POS W/SOCKET INSERT 4 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts, Bayonet Conn Bayonet F 4 POS Solder ST Cable Mount 4 Terminal 1 Port 4WFEMALEPLUGBAYONET Hirose 连接器 |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 20 | 工厂包装数量 | 20 |
合规参数
| RoHS | Compliant | 抗辐射加固 | No |
电气参数
| 额定电压 | 500VAC | 最大额定电流 | 5A |
机械参数
| 外形尺寸(长x宽) | 12 | 直径 | 18 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 12 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder |
| 触点形式 | 4Signal | 触头类型 | 母座 |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Nickel |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Silver |
| 紧固类型 | Bayonet Lock | 安装样式 | Free Hanging |
| 外壳材料（壳体） | Metal | 连接器用途 | Bayonet |
| 触头材料 | Copper Alloy | 总长度 | 41 mm |
| 端接排数 | 焊接 | 端接样式 | Solder |
| 第一触头极性 | Female | 触点数 | 4 |
| 位数 | 4 | 外壳尺寸-插件 | 12 |
| 外壳材料及表面处理 | Brass and Zinc, Nickel Plated | ||
产品信息
| 类型 | Bayonet | 连接器性别 | Male |
| 系列 | RM | 已删除 | Compliant |
| 产品子类型 | Connectors | 射频系列/标准 | RM |
| 输出配置 | Free Hanging (In-Line) | ||
环境参数
| 防护等级 | IP 67 | 工作温度 | -25°C ~ 85°C |
