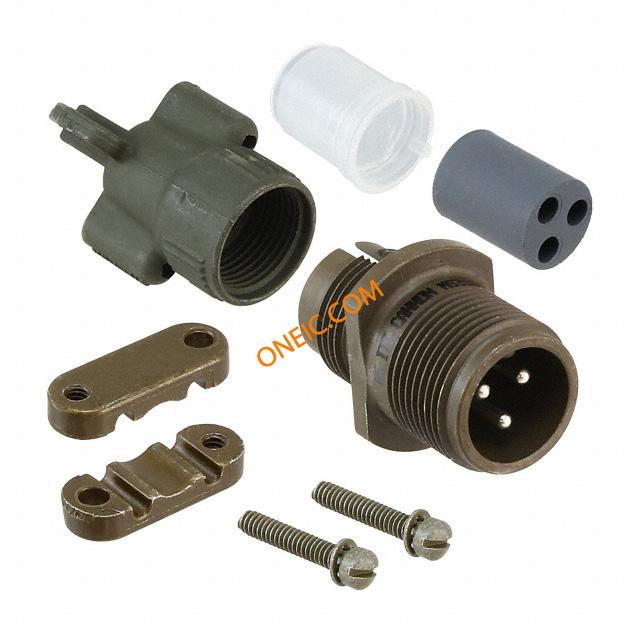

MS3101F10SL-3P
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Pack | 1 | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Voltage - Working | :250V |
| Current Rating (Max) | :13A | Insulation Resistance | :5000Mohm |
Mechanical
| Size | :16 | Weight | 0.028 |
| Packaging | Bulk | Wire Gauge | :16AWG |
| Orientation | N (Normal) | Termination | Solder |
| Weight (g): | 23.94900 | Mounting Type | Cable Mount |
| Connector Type | Receptacle, Male Pins | Contact Finish | Silver |
| Fastening Type | Threaded | Plating - Body | :Olive Drab Chromate |
| Insertion Angle | :10SL-3 | Material - Body | :Aluminium |
| Contact Material | :Copper | 1st Contact Gender | :Pin |
| Number of Contacts | :3 | Contact Termination | :Solder |
| Number of Positions | 3 | Shell Size - Insert | 10SL-3 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Wire Gauge or Range - AWG | :20AWG |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | MIL-C-5015 Circular | Gender | PL |
| Series | :MS3101F | Features | Strain Relief |
Environmental
| Mating Cycles | :100 | NEMA Frame Size | :IP67 |
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
Similar Parts
MS3106E10SL-3S
itt interconnect solutions
$88.9236
Details

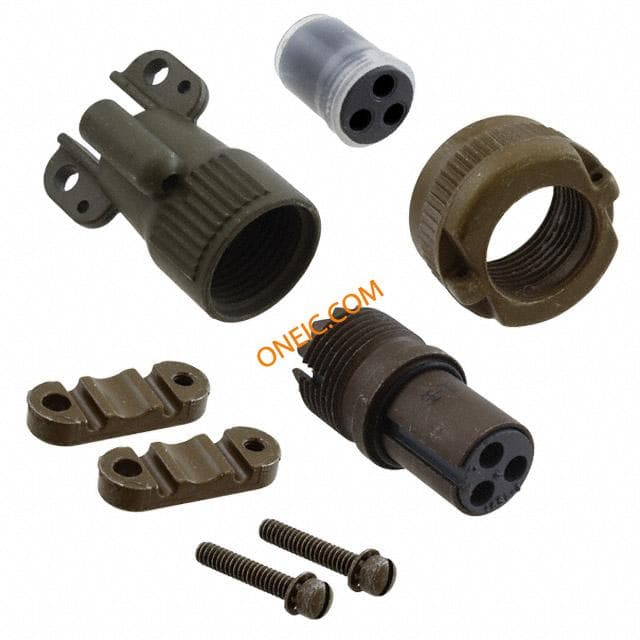

MS3106F10SL-3S
itt interconnect solutions
$195.2280
Details

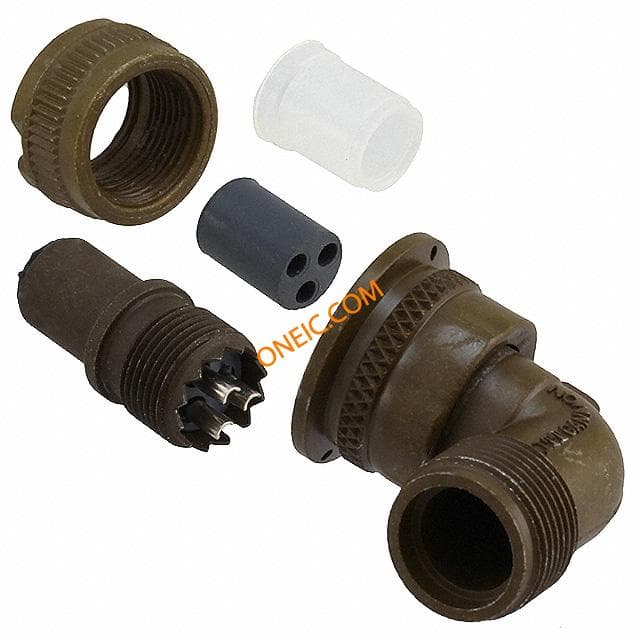

MS3108R10SL-3S
itt interconnect solutions
$187.2666
Details

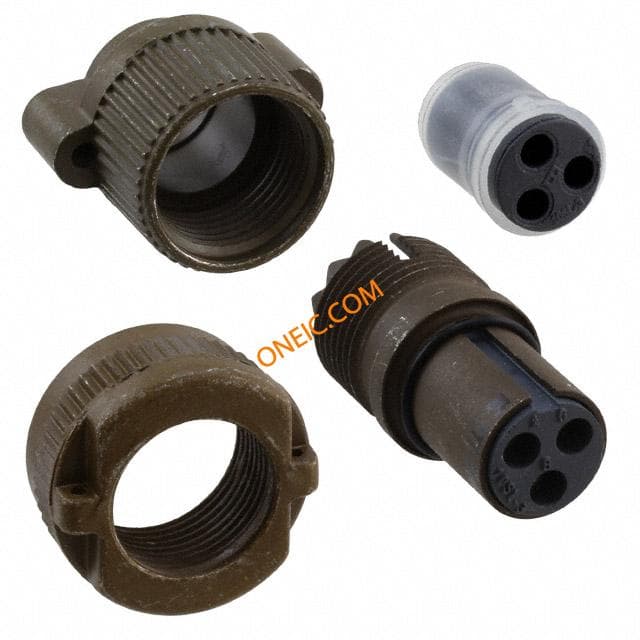

MS3106R10SL-3S
itt interconnect solutions
$235.5520
Details

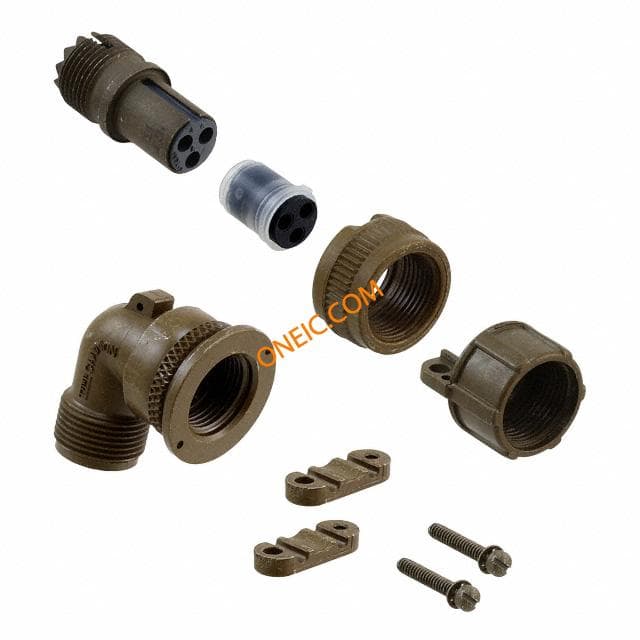

MS3108E10SL-3S
