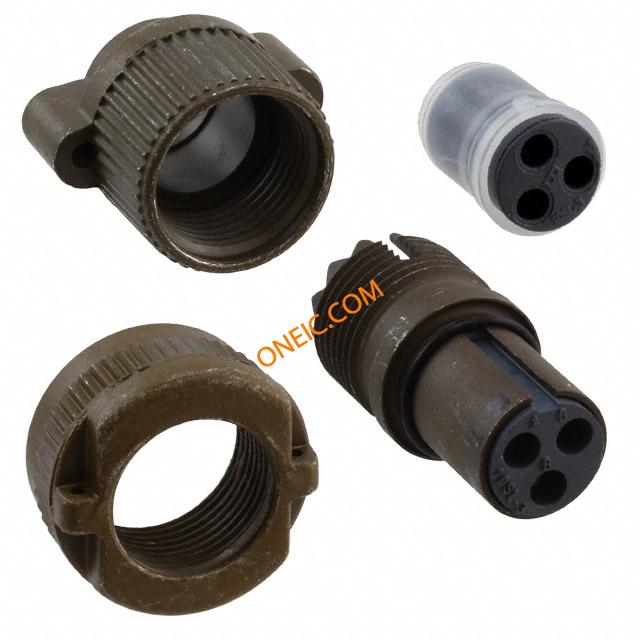

MS3106R10SL-3S
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-5015 |
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 22A |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Orientation | N (Normal) | Termination | Solder |
| Weight (g): | 22.02670 | Mounting Type | Cable Mount |
| Connector Type | Plug, Female Sockets | Contact Finish | Silver |
| Fastening Type | Threaded | Insertion Angle | :10SL-3 |
| Material - Body | :Aluminium | Contact Material | :Copper |
| 1st Contact Gender | :Socket | Number of Contacts | :3 |
| Contact Termination | :Solder | Number of Positions | 3 |
| Shell Size - Insert | 10SL-3 | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | MIL-C-5015 Circular | Gender | PL |
| Series | :MIL-DTL-5015 | ||
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
