点击放大查看

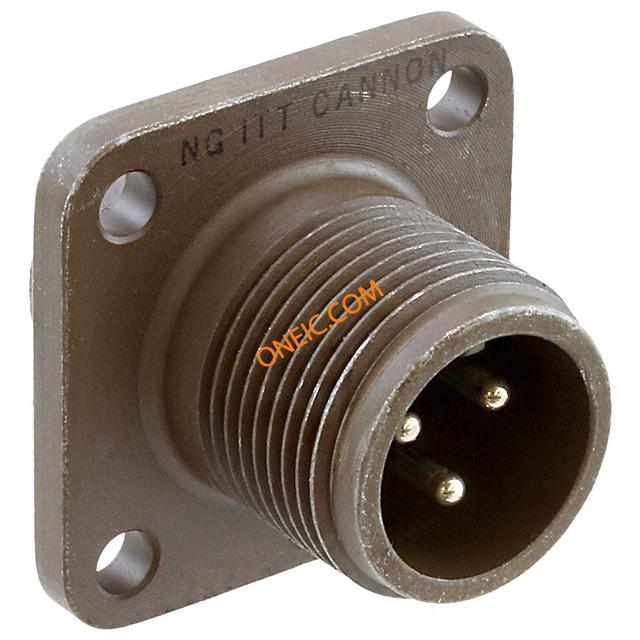

MS3102R10SL-3P
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Voltage - Working | :250V |
| Current Rating (Max) | :13A | Insulation Resistance | :5000Mohm |
Mechanical
| Size | :16 | Weight | 0.014 |
| Packaging | Bulk | Wire Gauge | :16AWG |
| Orientation | N (Normal) | Termination | Solder |
| Weight (g): | 14.00000 | Mounting Type | Box Mount |
| Connector Type | Receptacle, Male Pins | Contact Finish | Silver |
| Fastening Type | Threaded | Plating - Body | :Olive Drab Chromate |
| Insertion Angle | :10SL-3 | Material - Body | :Aluminium |
| Contact Material | :Copper | 1st Contact Gender | :Pin |
| Number of Contacts | :3 | Contact Termination | :Solder |
| Number of Positions | 3 | Shell Size - Insert | 10SL-3 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Wire Gauge or Range - AWG | :20AWG |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | MIL-C-5015 Circular | Gender | RCP |
| Series | :MS3102R | ||
Environmental
| Mating Cycles | :100 | NEMA Frame Size | :IP67 |
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
