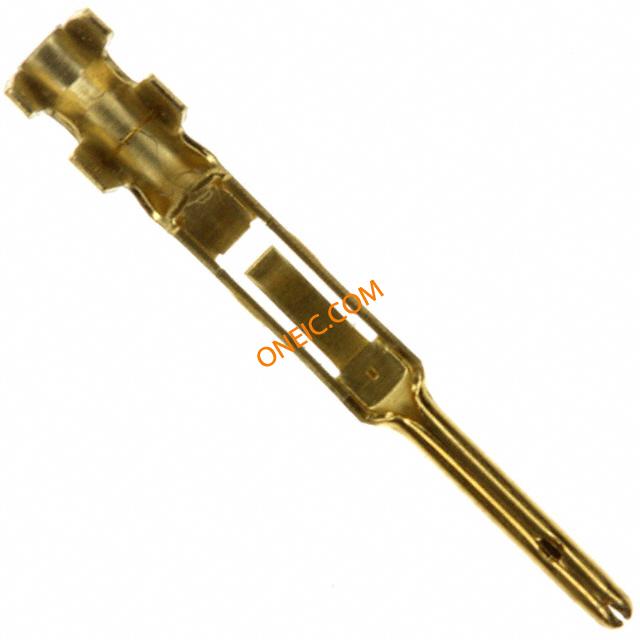

JN1-22-22P-PKG100
| Manufacturer | |
| Description | Standard Circular Contacts 20p contacts for JN1/2 series CONTACT PIN CRIMP 21-25AWG GOLD ContactForJN1/JN2Series,Packsof100 CRIMP CONTACT 25-21AWG GOLD |
| Category |
商业参数
| 产品类别 | Standard Circular Contacts | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 汽车级 | NO |
| 无铅定义 | RoHS-conform | ||
电气参数
| 最大额定电流 | JN1/JN2 | ||
机械参数
| 尺寸 | 22 | 材料（通用） | CopperAlloy |
| 包装方式 | Bulk | 导线线规 | 21-25 AWG |
| 触头类型 | STRAIGHT | 插针或插孔 | Pin |
| 接触镀层 | Gold | 主要材料 | Contact |
| 触点数 | 01 | 接触件端接 | Crimp |
| 接触镀层厚度 | 3.9µin (0.10µm) | 线规或范围 - AWG | 25 TO 21 |
| 触点材料 - 镀层 | CRIMP | ||
产品信息
| 类型 | Pin | 系列 | JN1 / JN2 |
环境参数
| 工作温度 | GOLD | ||
