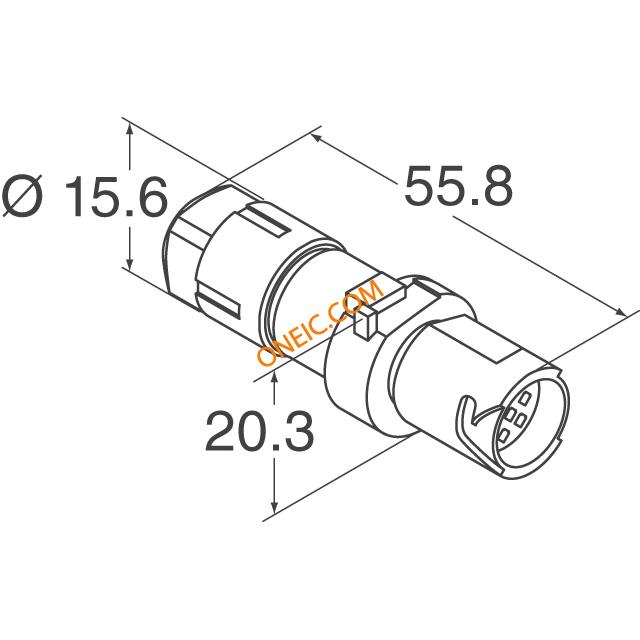

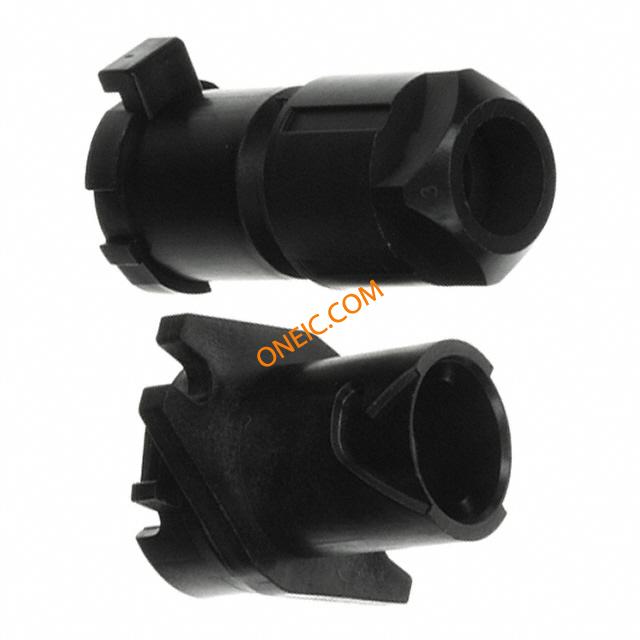

JN1KS10PL1
| Manufacturer | |
| Description | Standard Circular Connector 10P Panel to Cable IP67 CONN RCPT WALL 10POS CRIMP PIN CIRCULARCONNECTOR-PLASTIC-PCB/PANELTOCABLE-IP67,10CONTACTS |
| Category |
商业参数
| 其他名称 | 670-1068 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 10 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 包装方式 | Tray | 方向 | Keyed |
| 触点尺寸 | 22 | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Flange | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Push-Twist | 主要材料 | Sealed |
| 触点数 | 10 | 位数 | 10 |
| 外壳尺寸-插件 | S | 外壳材料及表面处理 | Synthetic Resin |
产品信息
| 备注 | Contacts Not Provided | 系列 | JN1 / JN2 |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | ||
