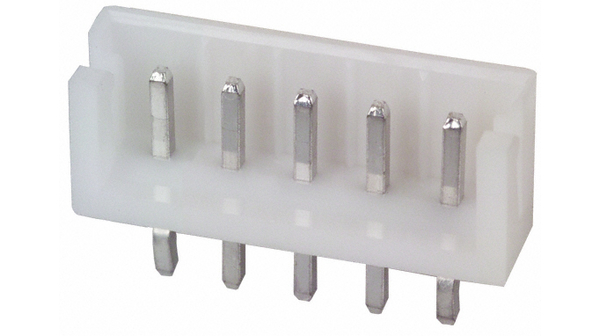

B5B-EH-A(LF)(SN)
| Manufacturer | |
| Description | CONN HEADER EH TOP 5POS 2.5MM JST EH Series 2.5mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 3A PCB pin header Pitch2.5 mm Poles 5 Single row / straight / with shroud EH, B5B-EH-A (LF)(SN), JST JST EH 系列 2.5mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 V ac/dc | Number of Poles | 5 |
| Contact Resistance | 10 mOhm | Current Rating (Max) | 3A |
| Insulation Resistance | 1000 MOhm | ||
Mechanical
| Color | White | Pitch | 0.098" (2.50mm) |
| Packaging | Bulk | Orientation | 直 |
| Termination | Press-Fit | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Fastening Type | Latch Lock |
| Number of Rows | 1 | Connector Style | Single row |
| Contact Material | Brass | Housing Material | Polyamide (PA 66) |
| Termination Rows | 焊接 | Color - Connectors | white |
| Number of Contacts | 5 | Cross Section Shape | 32...22 mm² |
| Number of Positions | 5 | 1st Connector Gender | Male |
Product Info
| Type | Shrouded Header | Series | EH |
| Coverage | 覆盖 | Connection Method | Wire-Board |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -25...+85 °C | ||
