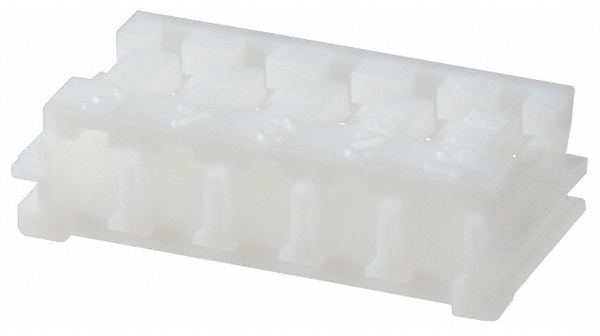

EHR-5
| Manufacturer | |
| Description | CONN HOUSING EH 5POS 2.5MM CRIMP 5 way crimp socket housing,2.5mm pitch Crimp housing Pitch2.5 mm Poles 5 Single row / Free hanging/cable mount EH, EHR-5, JST JST EH 系列 2.5mm 节距 5 路 直 电缆安装 PCB 壳体 |
| Category |
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 | Number of Poles | 5 |
| Contact Resistance | 10 mOhm | Current Rating (Max) | 3 A |
| Insulation Resistance | 1000 MOhm | Connector - Voltage Input | Crimp |
Mechanical
| Color | Natural | Depth | 7.1mm |
| Pitch | 0.098" (2.50mm) | Width | 3.8mm |
| Length | 14.5mm | Packaging | Bulk |
| Orientation | 直 | Contact Form | Female Socket |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Number of Rows | 1 |
| Connector Style | Single row | Housing Material | Nylon |
| Color - Connectors | white | Number of Contacts | 5 |
| Contact Termination | Crimp | Number of Positions | 5 |
| 1st Connector Gender | Female | Wire Gauge or Range - AWG | 32...22 AWG |
Product Info
| Note | Contacts Not Provided | Series | EH |
| Connection Method | Wire-Board | Output Configuration | Free Hanging (In-Line) |
| For Use With/Related Products | Disconnectable Crimp Connector | ||
Environmental
| Operating Temperature | -25...+85 °C | ||
Documents & Media
Similar Parts
SEH-001T-P0.6
JST Sales America Inc
CONN TERM CRIMP EH 22-30AWG SEH-001T-P0.6 Contact; female; 22÷30AWG; EH; crimped; 2.5mm Crimp contact Female 30...22 AWG, SEH-001T-P0.6, JST JST EH 系列 母 压接接线端子, 压接, 镀锡触点
SEH-001T-P0.6L
JST Sales America Inc
CONN TERM CRIMP EH 22-26AWG

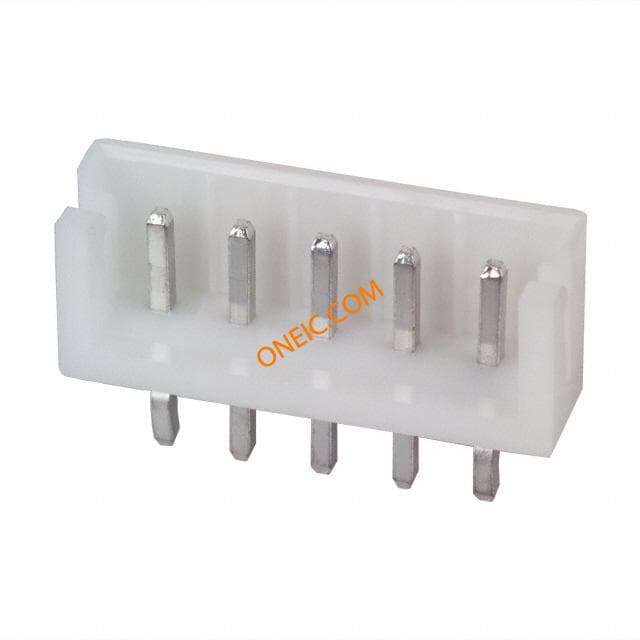

B5B-EH-A(LF)(SN)
JST Sales America Inc
CONN HEADER EH TOP 5POS 2.5MM JST EH Series 2.5mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 3A PCB pin header Pitch2.5 mm Poles 5 Single row / straight / with shroud EH, B5B-EH-A (LF)(SN), JST JST EH 系列 2.5mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔

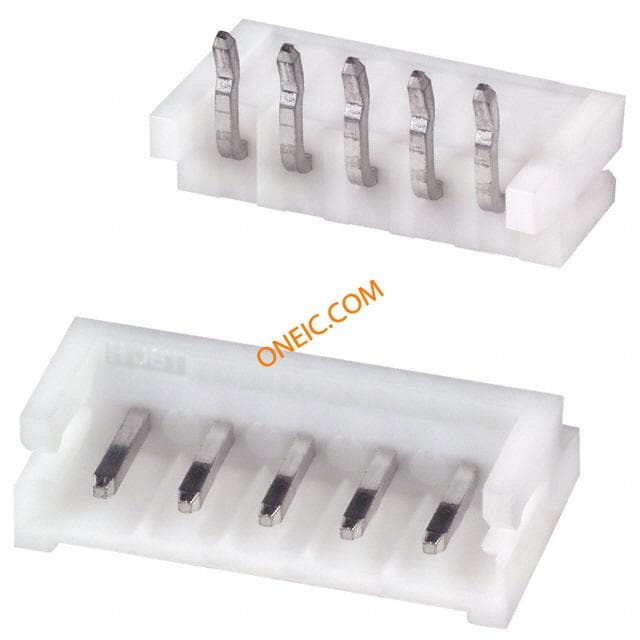

S5B-EH(LF)(SN)
