点击放大查看

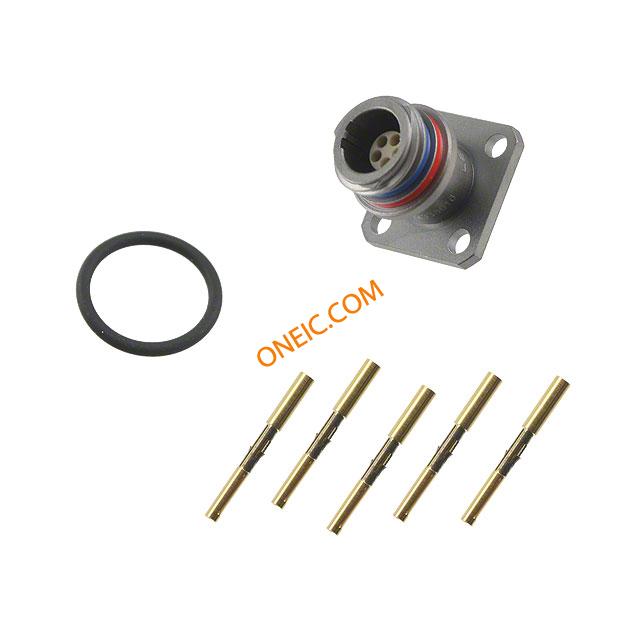

EDN.0M.305.XLM
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 15 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Current Rating (Max) | 6.5A | ||
Mechanical
| Weight | 0.004 | Packaging | Bulk |
| Orientation | N (Normal) | Termination | Crimp |
| Mounting Type | Panel Mount, Flange | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Threaded |
| Insertion Angle | :- | Material - Body | :Aluminium |
| Contact Material | :Brass, Bronze | 1st Contact Gender | :Socket |
| Number of Contacts | :5 | Contact Termination | :Crimp |
| Number of Positions | 5 | Shell Size - Insert | 305 |
| Shell Material, Finish | Aluminum, Nickel Plated | 1st Connector Mounting Type | :Flange |
Product Info
| Gender | :Socket | Series | :- |
| Features | Shielded | ||
Environmental
| Ingress Protection | IP68 - Dust Tight, Waterproof | Operating Temperature | -55°C ~ 200°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- M Series Catalog
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
