点击放大查看

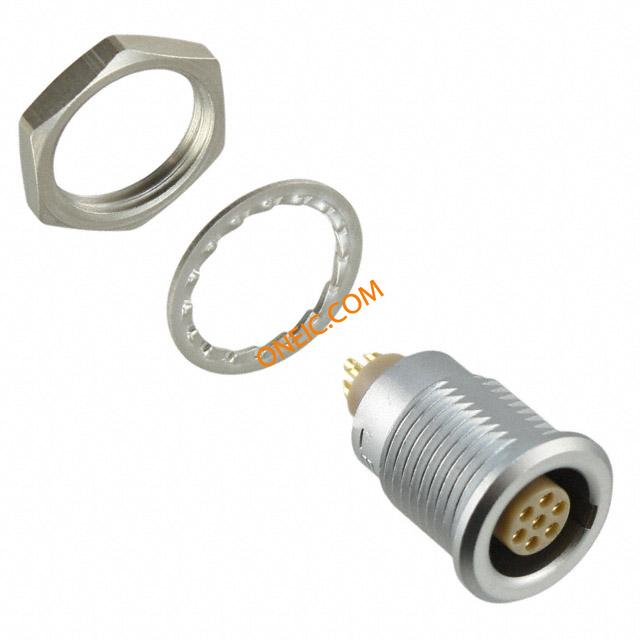

EGG.1B.307.CLL
| Manufacturer | |
| Description | Circular Push Pull Connectors RECP SIZE 1 7-PIN FEMALE SLDR CONN PNL MNT RCPT 7SKT SLD CUP 7 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts SOCKET, PANEL MOUNT, 1B, 7WAY 7POLE1BPANELMOUNTSKT Socket; Connector: circular; 1B; female; PIN:7; 7A; 1.05kV Device socket, B-series 7-pin Poles=7, EGG.1B.307.CLL, Lemo Lemo 1B 系列 7路 面板安装 直向 连接器 插座 , 母触点 |
| Category |
Business
| Lead Time | 98 Days | Subcategory | Connector Circular |
| Product Category | Circular Push Pull Connectors | Standard Package | 100 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Test | 1.05kV | Voltage Rating | :660V |
| Contact Resistance | :5.6mohm | Dielectric Strength | :19V/m |
| Current Rating (Max) | 7A | ||
Mechanical
| Weight | 0.009 | Packaging | Bulk |
| Orientation | G | Shell Style | Receptacle |
| Termination | Solder Cup | Weight (g): | 52.80000 |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Shell Plating | Chrome Plated |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | for panel mounting |
| Plating - Body | :Nickel | Insertion Angle | :307 |
| Material - Body | :Brass | Contact Material | :Bronze |
| Package Quantity | 2 | Connector - Cable | socket |
| Termination Style | Solder | 1st Contact Gender | Female |
| Number of Contacts | 7 | Contact Termination | :Solder |
| Number of Positions | 7 | Shell Size - Insert | 307 |
| Shell Material, Finish | Brass, Chrome Plated | Contact Material - Mating | :Bronze |
| 1st Connector Mounting Type | :Panel | Contact Finish - Post (Mating) | :Gold |
Product Info
| Spg | 2 | Gender | Female |
| Series | B | Features | Shielded |
| Product Type | Connectors | Adapter Series | 1B |
| Number of Units | 1 | ||
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP50 |
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
