点击放大查看

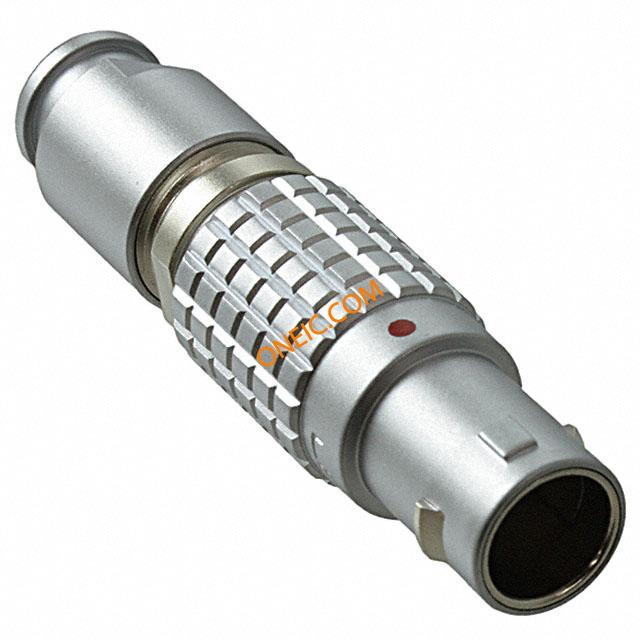

FGG.1B.307.CLAD42Z
| Manufacturer | |
| Description | Circular Push Pull Connectors STRAIGHT PLUG MALE W. CABLE COLLET CONN INLINE PLUG 7PIN SLD CUP |
| Category |
商业参数
| 标准包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 7A | ||
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 1 |
| 方向 | G | 外壳样式 | Plug |
| 端接方式 | Solder Cup | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Chrome | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Push-Pull |
| 外壳材料（壳体） | Metal | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 触点数 | 7 |
| 位数 | 7 | 外壳尺寸-插件 | 307 |
| 外壳材料及表面处理 | Brass, Chrome Plated | ||
产品信息
| 系列 | B | 产品特性 | Shielded |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP50 - Dust Protected | 工作温度 | -55°C ~ 250°C |
Documents & Media
相关型号

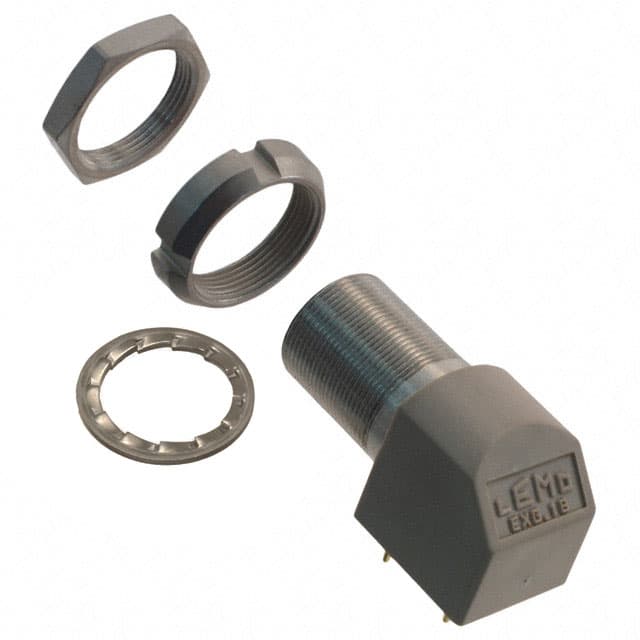

EXG.1B.307.HLN
LEMO
Circular Push Pull Connectors RECPT 900F.PCB 7 CTS CONN PNL MNT RCPT 7SKT R/A PCB
GMA.1B.030.DN
LEMO
Circular Push Pull Connectors CONN MALE STRAIN REL CORD GRIP 5 PIN MALE BEND RELIEF 3.0MM BLACK

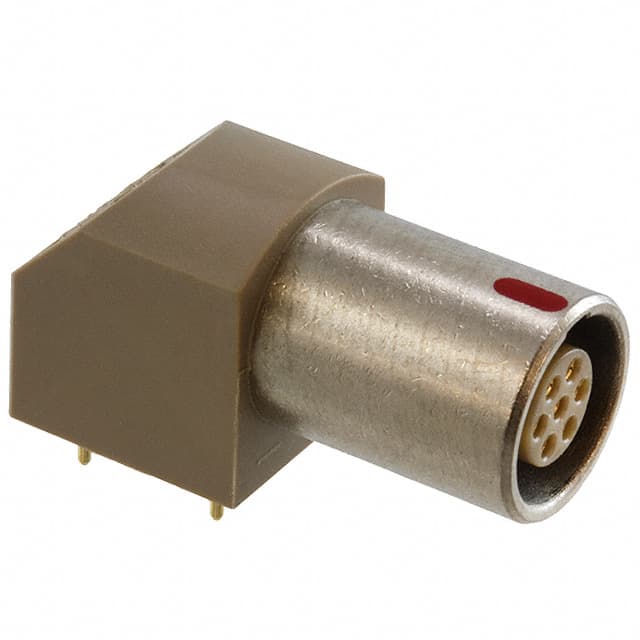

EPG.1B.307.HLN
LEMO
Circular Push Pull Connectors 7P FEMALE PCB MNT R/A SOLDER CONN R/A PCB RCPT 7SKT 7 Pole Female Right Angle Through Hole Industrial & Automation Circular Connector with Female Contacts SOCKET, R/A, PCB, 1B, 7WAY Lemo 1B 系列 7路 通孔 直角 连接器 插座 , 母触点
GMA.1B.025.DG
LEMO
Circular Push Pull Connectors BEND RELIEF 2.5MM GRAY Anti-kink sleeve grey 2.5...2.9 mm, GMA.1B.025.DG, Lemo
GMA.1B.025.DA
LEMO
Circular Push Pull Connectors BEND RELIEF BEND RELIEF 2.5MM BLUE
GMA.1B.035.DA
LEMO
Circular Push Pull Connectors BEND RELIEF BLUE BEND RELIEF 3.5MM BLUE
EGG.1B.307.CLL
LEMO
Circular Push Pull Connectors RECP SIZE 1 7-PIN FEMALE SLDR CONN PNL MNT RCPT 7SKT SLD CUP 7 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts SOCKET, PANEL MOUNT, 1B, 7WAY 7POLE1BPANELMOUNTSKT Socket; Connector: circular; 1B; female; PIN:7; 7A; 1.05kV Device socket, B-series 7-pin Poles=7, EGG.1B.307.CLL, Lemo Lemo 1B 系列 7路 面板安装 直向 连接器 插座 , 母触点
GMA.1B.035.DG
LEMO
Circular Push Pull Connectors BEND RELIEF GRAY BEND RELIEF 3.5MM GRAY Anti-kink sleeve grey 3.5...3.9 mm, GMA.1B.035.DG, Lemo
GMA.1B.025.DN
LEMO
Circular Push Pull Connectors 2.5mm to 2.9mm dia. BLK BND RLF 1B CABLE BEND RELIEF 2.5MM BLACK STRAIN RELIEF, BLACK
GMA.1B.030.DG
LEMO
Circular Push Pull Connectors BEND REFLIF BEND RELIEF 3.0MM GRAY Anti-kink sleeve grey 3...3.4 mm, GMA.1B.030.DG, Lemo
GMA.1B.030.DJ
LEMO
Circular Push Pull Connectors BEND RELIEF BEND RELIEF 3.0MM YELLOW

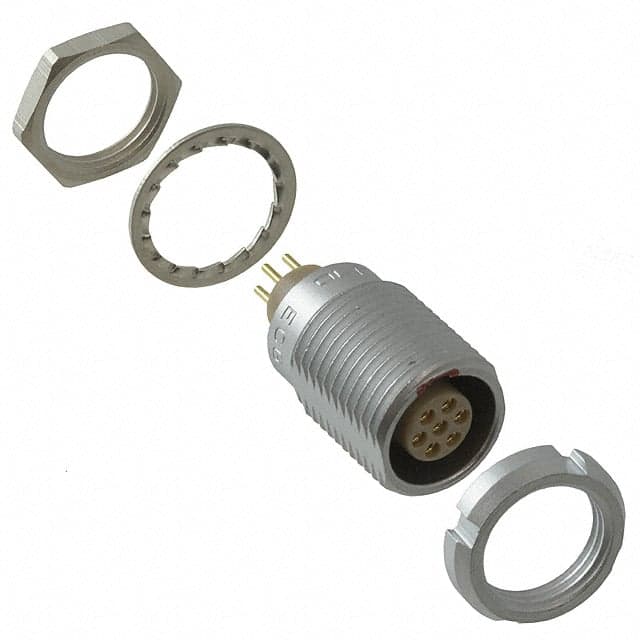

ECG.1B.307.CLN
