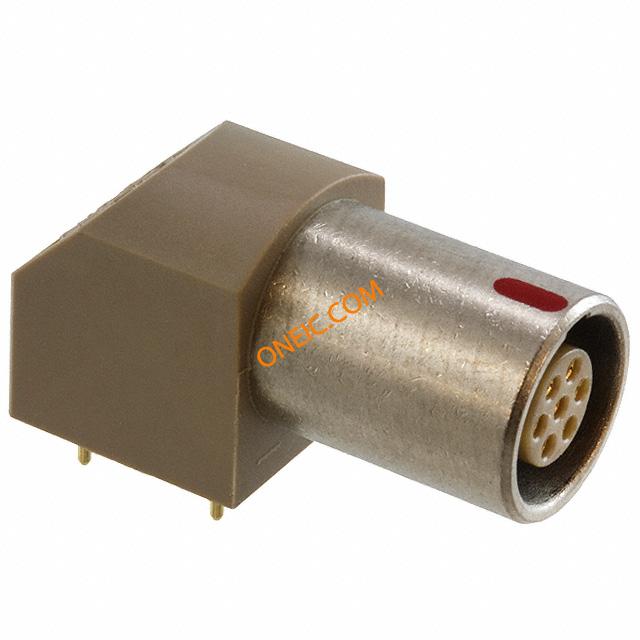

EPG.1B.307.HLN
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 50 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Weight | 0.01 | Packaging | Bulk |
| Orientation | G | Shell Style | Receptacle |
| Termination | Solder | Weight (g): | 8.80000 |
| Mounting Type | Through Hole, Right Angle | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Through Hole | Shell Material | Plastic |
| Insertion Angle | :- | Material - Body | :Brass |
| Contact Material | Beryllium Copper | Termination Style | Solder |
| 1st Contact Gender | Female | Number of Contacts | 7 |
| Contact Termination | :Solder | Number of Positions | 7 |
| Shell Size - Insert | 307 | Shell Material, Finish | Polyphenylene Sulfide (PPS) |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Gender | Female | Series | B |
| Features | Shielded | Product Type | Connectors |
Environmental
| NEMA Frame Size | :IP50 | Ingress Protection | IP50 - Dust Protected |
| Operating Temperature | -55°C ~ 250°C | ||
