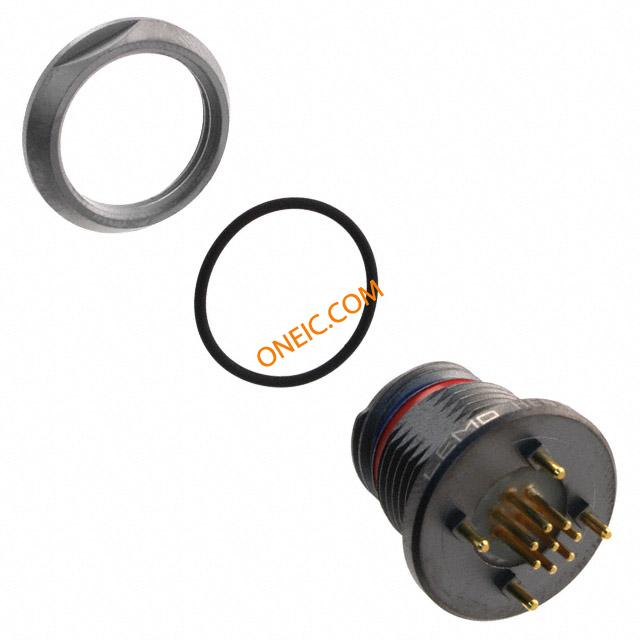

HEN.1M.308.XLNP
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 1.3 kV | Current Rating (Max) | 5A |
| Connector - Voltage Input | Standard | ||
Mechanical
| Weight | 0.007 | Packaging | Bulk |
| Shielding | Shielded | Wire Gauge | 26-22 |
| Orientation | N (Normal) | Shell Style | Receptacle |
| Termination | Solder | Weight (g): | 8.80000 |
| Mounting Type | Panel Mount, Flange; Through Hole | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Panel |
| Shell Material | Aluminum | Insertion Angle | 308 |
| Material - Body | :Aluminium | Contact Material | Bronze |
| Housing Material | Aluminium Alloy | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 8 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 8 |
| Shell Size - Insert | 308 | Shell Material, Finish | Aluminum, Nickel Plated |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Gender | Female | Series | 1M |
| Features | Shielded | Product Type | Connectors |
Environmental
| Seal Rating | IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -55°C ~ 200°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- HEN.1M.308.XLNP
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
