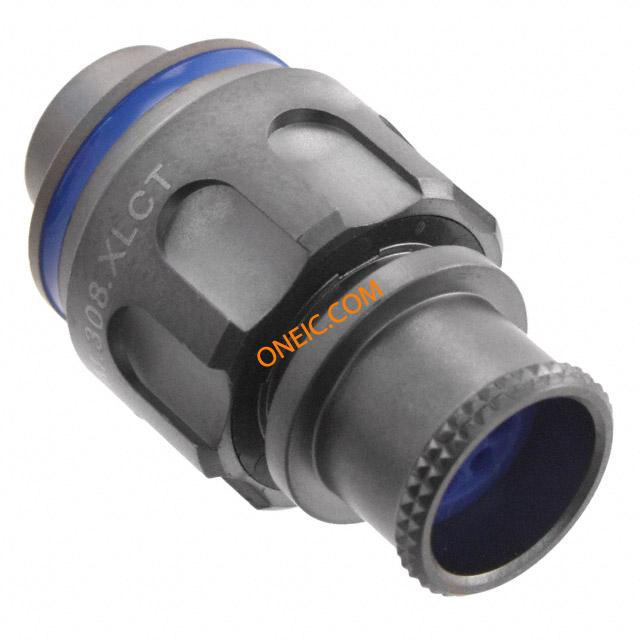

点击放大查看
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 1.3 kV | 最大额定电流 | 5A |
| 连接器类型 - 电压输入 | Standard | ||
机械参数
| 重量 | 0.008 | 包装方式 | Bulk |
| 屏蔽 | Shielded | 导线线规 | 22 AWG to 26 AWG |
| 方向 | N (Normal) | 外壳样式 | Plug |
| 端接方式 | Crimp | 重量（g） | 8.80000 |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Wire | 连接器用途 | Quick Connect |
| 插入角度 | :00-3 | 本体材料 | :Aluminium |
| 触头材料 | Brass | 壳体材料 | Aluminium Alloy |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 8 | 接触件端接 | :Crimp |
| 位数 | 8 | 外壳尺寸-插件 | 308 |
| 外壳材料及表面处理 | Aluminum, Nickel Plated | 第一连接器安装类型 | :Cable |
产品信息
| 连接器性别 | Male | 系列 | 1M |
| 产品特性 | Shielded | 产品子类型 | Connectors |
环境参数
| 密封等级 | IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | -55°C ~ 200°C | ||
Documents & Media
相关型号
PEN.1M.308.XLMT
LEMO
Standard Circular Connector 8P RECEPT FML CRIMP PANEL MOUNT W/NUT CONN PNL MNT RCPT 8SKT CRIMP SOCKET, 1M, BACK PANEL MOUNT, 8WAY
EDN.1M.308.XLM
LEMO
Standard Circular Connector 8P FEMALE CRIMP BLUE FIXED RCPT SQ FLANGE CONN PNL MNT RCPT 8SKT CRIMP

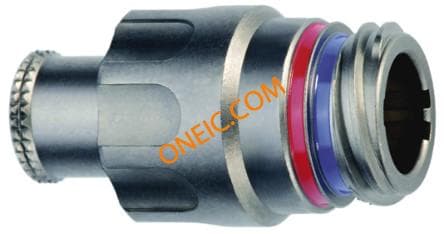

PHN.1M.308.XLMT
