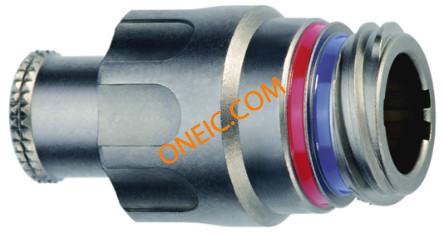

PHN.1M.308.XLMT
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85369010 | ||
Electrical
| Current Rating (Max) | 5A | Connector - Voltage Input | Standard |
Mechanical
| Weight | 0.009 | Packaging | Bulk |
| Shielding | Shielded | Shell Size | 1 |
| Orientation | N (Normal) | Shell Style | Receptacle |
| Termination | Crimp | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Panel | Shell Material | Metal |
| Connector Usage | Quick Connect | Insertion Angle | :08-35 |
| Material - Body | :Aluminium | Contact Material | Bronze |
| Housing Material | Aluminium Alloy | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 8 |
| Contact Termination | :Crimp | Number of Positions | 8 |
| Shell Size - Insert | 308 | Shell Material, Finish | Aluminum, Nickel Plated |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Gender | Female | Series | 1M |
| Features | Shielded | Product Type | Connectors |
Environmental
| Seal Rating | IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -55°C ~ 200°C | ||
Documents & Media
Sourcing & traceability
- Datasheet
- M Series, Ratchet Coupling Catalog
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
