点击放大查看

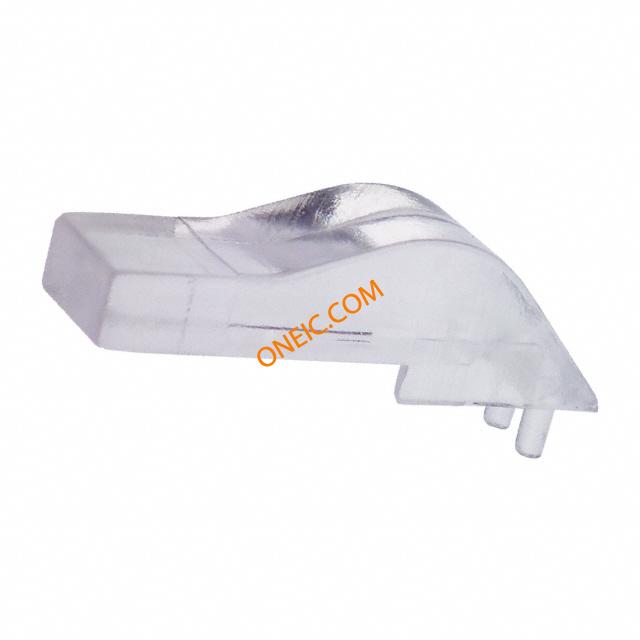

LPF-R011362S
| Manufacturer | |
| Description | LED Light Pipes 3mm Right Angle LIGHT PIPE 3X5.5MM RA RECT SMD LIGHT PIPE, SINGLE, RECTANGLE, PCB LightPipe;0.811in.;ClearPolycarbonate;SML-LX1206xxSeries;0.217in. |
| Category |
商业参数
| 产品 | Rigid Light Pipes | 商标名 | Transbrite |
| 产品类别 | LED Light Pipes | 标准包装数量 | 1,000 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 90019000 | ||
电气参数
| 光学尺寸 | 1206 | ||

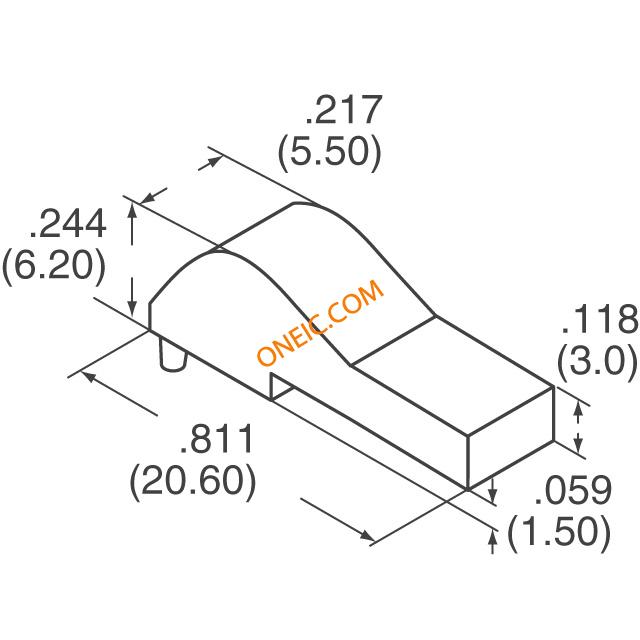

机械参数
| 颜色 | Clear | 形状 | Rectangular |
| 宽度 | 6mm | 高度 | 0.244in. |
| 长度 | :20.6mm | 重量 | 0.002 |
| 材料（通用） | Polycarbonate (PC) | 包装方式 | Bulk |
| 透镜颜色 | :Transparent | 安装类型 | Board Mount, Press Fit, Right Angle |
| 行程角度 | RectangularRightAngle | 安装样式 | PCB |
| 透镜样式/尺寸 | Rectangle with Flat Top, 5.5mm x 3mm | 总长度 | 20.6 mm |
| 主要材料 | LightPipes | 尺寸/外形 | 3 mm x 5.5 mm |
| 位数 | :1 | 光学边缘厚度 | :Rectangular |
产品信息
| 类型 | Rigid | 系列 | SML-LX23Series |
| 配置 | Single | 应用细节 | Frontpanelandfaultindicator,lighttransporter,legendbacklight |
Documents & Media
