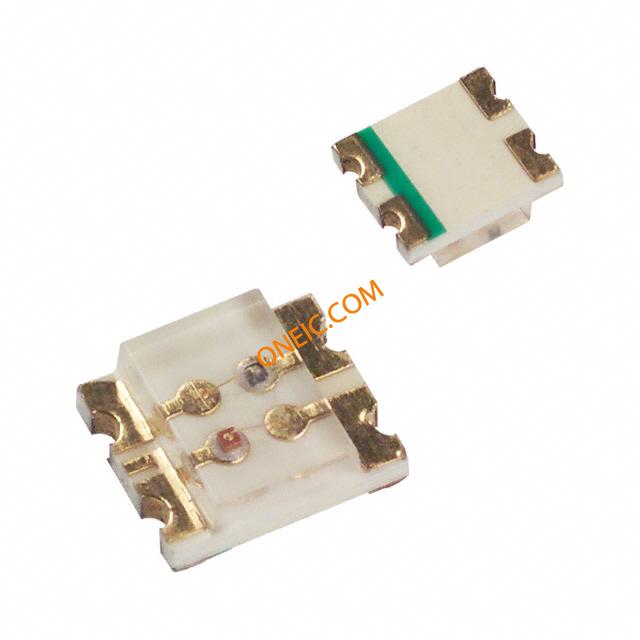

SML-LX1210SRSGC-TR
| Manufacturer | |
| Description | Standard LEDs - SMD Dual Red/Green Water Clear LED PCB RED GREEN CLR 1210 LED Bi-Color Green/Red 565nm/660nm 4-Pin SMD T/R LED, RED / GREEN, 2MM X 2.7MM LED;2.7X3.2MMPCBSMT,DUALRED/GREENWATERCLEAR |
| Category |
商业参数
| 其他名称 | 67-1703-1 | 产品类别 | Standard LEDs - SMD |
| 标准包装数量 | 3,000 | 工厂包装数量 | 3000 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 标准 | ULRecognized,CSACertified | 海关税号 | 85414010 |
电气参数
| 灯类型 | :- | 光学尺寸 | 3.2 mm x 2.7 mm x 1.1 mm |
| 波长 | :R 660nm, G 565nm | 光通量 | 15/10mcd |
| 额定功率 | 80 mW, 65 mW | 视角 | 160 deg |
| 输出电流 | 20mA | 供电电压 | 2.2V Green, 1.7V Red |
| 峰值波长 | 565nm, 660nm | LED正向电流 | 20 mA |
| LED正向电压 | 1.7 V, 2.2 V | 毫坎德拉等级 | 10mcd Green, 15mcd Red |
| 主波长 | 660 nm, 565 nm | ||
机械参数
| 颜色 | Green, Red | 高度 | 1.10mm |
| 重量 | 0.032 | LED颜色 | :Red, Green |
| 包装方式 | Reel | 透镜颜色 | Water Clear |
| 透镜样式 | :Rectangular | 安装类型 | Surface Mount |
| 接触镀层 | Diffused | 安装样式 | SurfaceMount |
| 封装形式 | 1210 | 透镜样式/尺寸 | Rectangle with Flat Top, 2.7mm x 2mm |
| 尺寸/外形 | 3.20mm L x 2.70mm W | 照明颜色 | Red, Green |
产品信息
| 透镜类型 | Clear | ||
环境参数
| 工作温度 | + 85 C | 光通量 @ 电流/温度 | 15 mcd, 10 mcd |
