MCP320B2Q
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 458-1059 | Standard Package | 15 |
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 2.5kHz | Input Type | DC |
| Voltage Range | 3 ~ 20V | Operating Mode | Continuous |
| Voltage Rating | 12VDC | Current - Output | 20mA |
| Driver Circuitry | Indicator, Internally Driven | Sound Pressure Level (SPL) | 95dB @ 12V, 30cm |
Mechanical
| Packaging | Bulk | Termination | PC Pins |

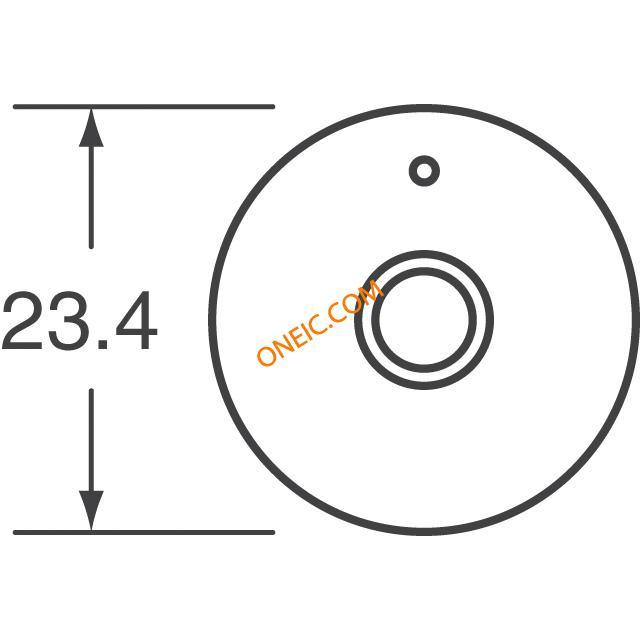

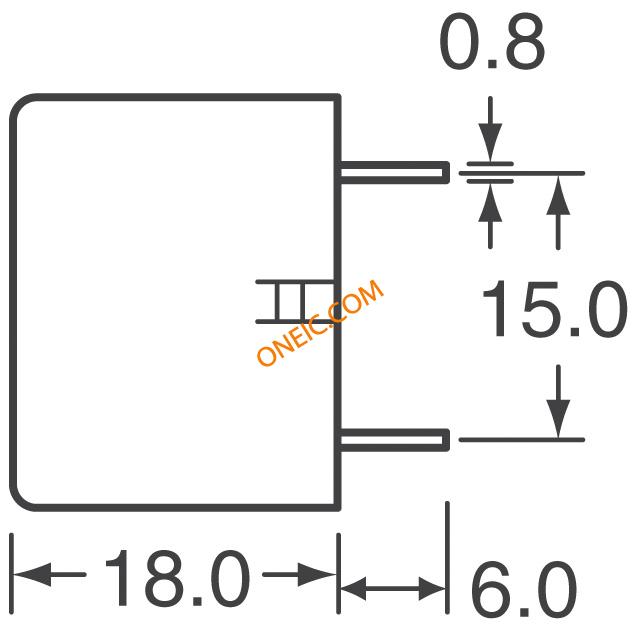

| Mounting Type | Through Hole | Size / Dimension | Circular - 23.40mm Dia x 18.20mm H |
Product Info
| Washable | No | Technology | Piezo |
Environmental
| Operating Temperature | -20°C ~ 90°C | ||
Documents & Media
PDF Document
PDF Document
