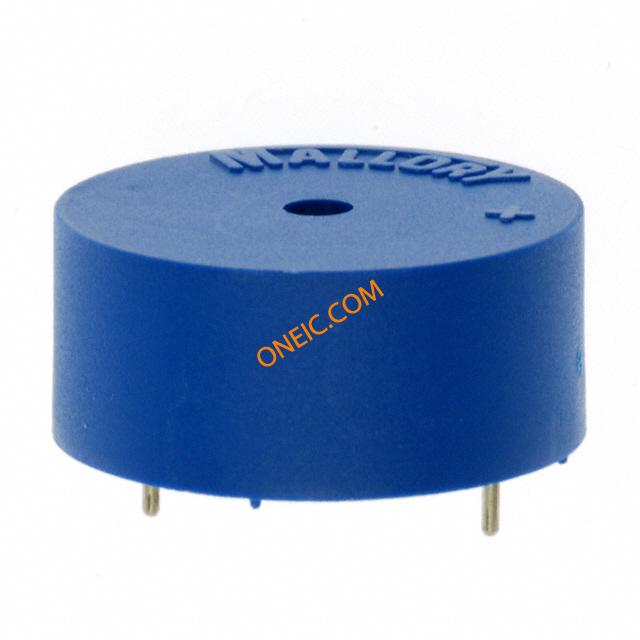

MSR320R
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 458-1087 | Standard Package | 1 |
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 3.5kHz | Input Type | DC |
| Voltage Range | 3 ~ 20V | Operating Mode | Continuous |
| Current - Output | 3 ~ 16mA | Driver Circuitry | Indicator, Internally Driven |
| Voltage - Supply | 3 ~ 20V | Current Rating (Max) | 3 ~ 16mA |
| Sound Pressure Level (SPL) | 71dB @ 3V, 61cm | ||
Mechanical

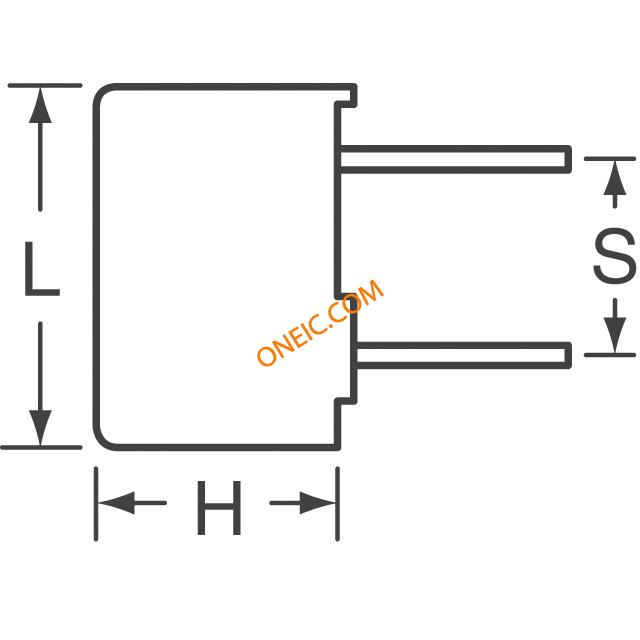

| Size | Circular - 23.00mm Dia x 10.10mm H | Packaging | Bulk |
| Termination | PC Pins | Mounting Type | Through Hole |
| Size / Dimension | Circular - 23.00mm Dia x 10.10mm H | ||
Product Info
| Series | Sonalert® | Washable | No |
| Technology | Piezo | Other Specifications | 71dB @ 3V, 61cm |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- MSR320R Performance Curves
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
