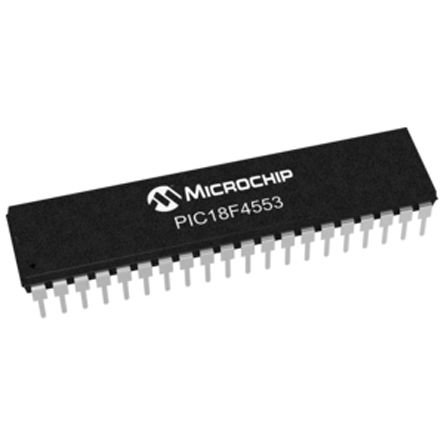

PIC18F4553-I/P
| Manufacturer | |
| Description | MCU 8-bit PIC18 PIC RISC 32KB Flash 5V 40-Pin PDIP Tube IC MCU 8BIT 32KB FLASH 40DIP PIC18F4553-I/P, 8 bit Microcontroller PIC 48MHz 32kb Flash, 2048B RAM, USB I2C SPI 40-Pin PDIP 8-bit Microcontrollers - MCU 32KB FLSH 2048 RAM FSUSB 2.0 12B ADC IC, MCU, 8-BIT, 32K FLASH, PDIP40 44-Pin,32KBFlash,2048RAM,FS-USB2.0,12-BitADC,PDIP PIC microcontroller; EEPROM:256B; SRAM:2048B; 48MHz; DIP40 Microchip PIC18F 系列 8 bit PIC MCU, 48MHz, 32 kB、256 B ROM 闪存, 2048 B RAM, 1xUSB, 40针 PDIP封装 |
| Category |
商业参数
| 其他名称 | PIC18F4553IP | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85411000 | 零件状态 | :18F4553 |
| 抗辐射加固 | No | ||
电气参数
| 输入端 | 35 | 转速 | 48 MHz |
| 定时器 | 1 x 8 bit, 3 x 16 bit | 存储器 | 32KBytes |
| RAM 大小 | 2 KB | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 48 MHz |
| 接口 | I2C/SPI/USART/USB | 时钟速率 | 48 MHz |
| 比较器数量 | 2 | EEPROM容量 | 256 x 8 |
| 存储器容量 | 2 KB | 存储器类型 | Flash |
| I/O 数量 | 35 | 电压范围 | 2-5.5V |
| 位数 | :8 bit | 额定电压 | 4.2 → 5.5 V |
| 时钟频率 | :48MHz | 数据转换器 | A/D 13x12b |
| 最大频率 | 48MHz | DAC数量 | 2 |
| 振荡器类型 | Internal | 供电电压 | 5 V |
| 分辨率（位） | 12bit | 通道数量 | 0 |
| 模拟输入/输出 | 13-Channel,12-Bit | 非易失性存储器 | 256Bytes |
| 程序存储器大小 | 32 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 13 | 8位定时器数量 | 1 |
| 最小供电电压 | 4.2 V | 频率（中心/带宽） | 16 bit, 8 bit |
| 最大功耗 | 1000 mW | 每元件位数 | 12 bit |
| 供电电压 (Vcc/Vdd) | 4.2 V ~ 5.5 V | ||
机械参数
| 宽度 | 0.58in | 高度 | 0.195in |
| 长度 | 2.095in | 重量 | 0.2 |
| 包装方式 | Tube | 端接方式 | :Through Hole |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | :40 | 封装形式 | 40PDIP |
| 冷却的封装 | PDIP | 材料表面处理 | :- |
| 包装数量 | 10 | 尺寸/外形 | 2.095 x 0.58 x 0.195in |
| 位数 | 40 | 供应商器件封装 | 40-PDIP |
| 核心数/总线宽度 | 8 Bit | 脉冲宽度失真（最大） | 1(CCP), 1(ECCP) |
产品信息
| SPG | 10 | USB | 1 x Device |
| 类型 | PIC microcontroller | 系列 | PIC18 |
| 基本单元 | :PIC18F | 闪存大小 | :32KB |
| 片内RAM（通道数×位宽） | 13-chx12-bit | 外设 | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, SPI, UART/USART, USB |
| 可编程性 | Yes | 核心处理器 | PIC |
| 内置振荡器 | 32kHz, 8MHz | 单元数量 | 1 |
| 定时器数量 | 4 | 控制器系列 | :PIC18F4xxx |
| 射频系列/标准 | PIC18 | A/D转换器数量 | :13 |
环境参数
| 温度范围 | :Industrial | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
