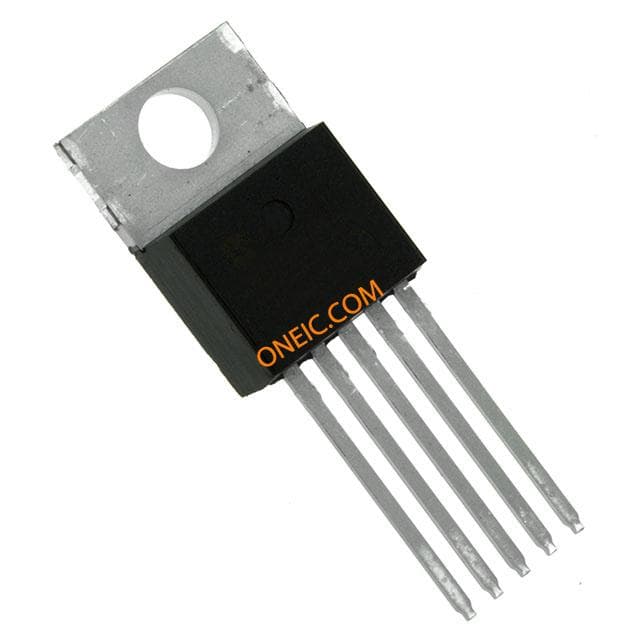

TC4421AVAT
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 240 | Product | MOSFET Gate Drivers |
| Unit Pack | 50 | Product Category | Gate Drivers |
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
| Standard Package Name | TO-220 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
Electrical
| Output | inverting | Fall Time | 60 ns |
| Delay Time | 38ns | Input Type | Inverting |
| Voltage Rating | 4.5 V | Rise Time (Typ) | 34 ns |
| Current - Output | 9 A | Current - Supply | 0.25 mA |
| Driver Circuitry | Low Side | Voltage - Supply | 4.5 V ~ 18 V |
| Number of Outputs | 1 | Number of Channels | 1 |
| Current - Peak Output | 10(Typ) A | Voltage - Output (Max) | :17.975V |
| Voltage - Supply (Min) | 18 V | Power Dissipation (Max) | :1.6W |
| Delay Time - Propagation | :38ns | Input Logic Level - High | CMOS|TTL |
| Reverse Recovery Time (trr) | 26ns | Resistance - Wiper (Ohms) (Typ) | 0.8|1.25 Ohm |
| Current - Peak Pulse (10/1000us) | 10A | Max Propagation Delay @ V, Max CL | 32 ns |
| Impulse Discharge Current (8/20us) | 28ns | Propagation Delay tpLH / tpHL (Max) | 49 |
| Common Mode Transient Immunity (Min) | Extended | ||
Mechanical
| Width | 4.83mm | Height | 9.02mm |
| Length | 10.67mm | Weight | 0.000104 |
| Packaging | Tube | Case Color | :TO-220 |
| Termination | :Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :5 |
| Package / Case | 5TO-220 | Package Cooled | TO-220 |
| Material Finish | :- | Package Quantity | TO-220 |
| Size / Dimension | 10.67 x 4.83 x 9.02mm | Number of Positions | 5 |
| Supplier Device Package | TO-220-5 | ||
Product Info
| Spg | 10 | Type | Inverting |
| Base Unit | :4421 | Configuration | Low-Side |
| Number of Units | 1 | Module/Board Type | :Low Side |
| Number of Drivers | 1 | Number of Configurations | 1 |
Environmental
| Operating Temperature | -40 to 125 °C | ||
Documents & Media
Similar Parts
Sourcing & traceability
- Datasheet
- 21946a.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
