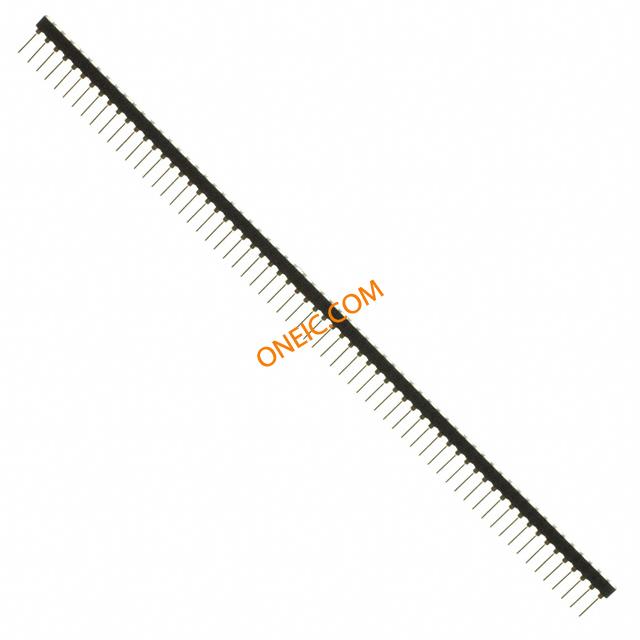

319-10-164-00-002000
| Manufacturer | |
| Description | Conn SIP Socket Strip HDR 64 POS 2.54mm Solder ST Thru-Hole CONN SPRING TARGET SGL 64POS PCB Headers & Wire Housings SPRG TARGET SGL 64P PCB |
| Category |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 3 |
| 工厂包装数量 | 3 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最小输入电压 | 150VDC|100VAC | ||
机械参数

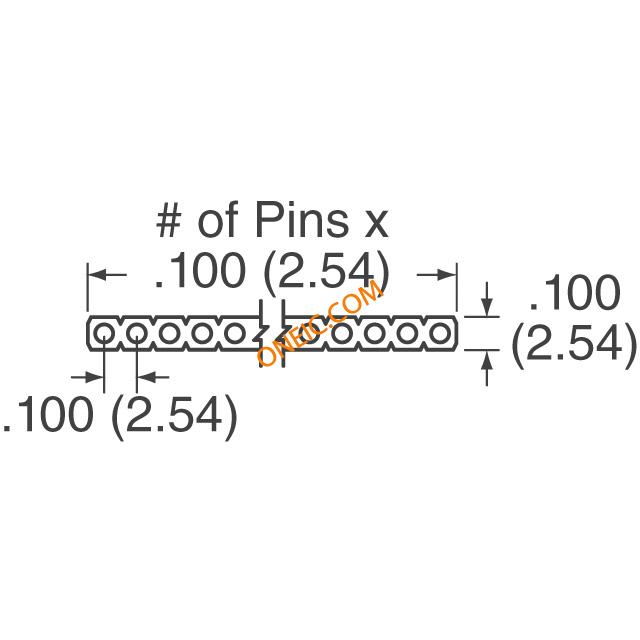

| 深度 | 2.54 | 间距 | 0.100" (2.54mm) |

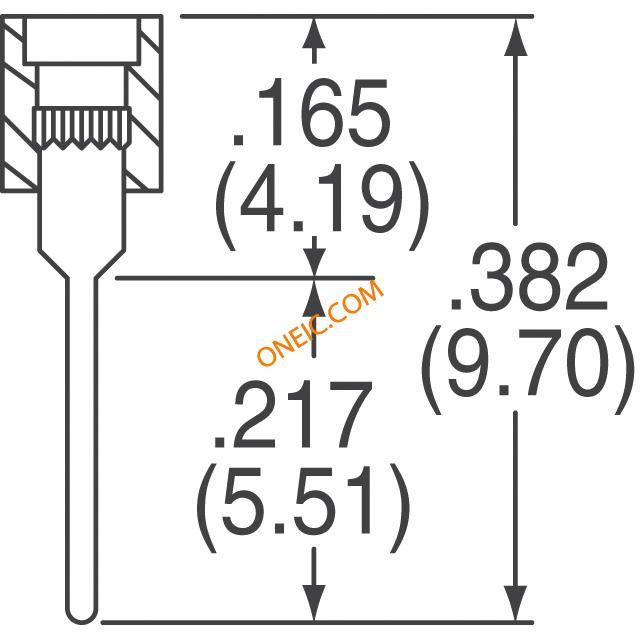

| 高度 | 4.19 | 材料（通用） | Brass Alloy |
| 包装方式 | Bulk | 端接方式 | Solder |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Mating Target | 接触镀层 | Gold |
| 排数 | 1 | 壳体材料 | Polychlorinated Terphenyl |
| 总长度 | 162.56 | 触点数 | 64 |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 类型 | SIP Socket Strip | 连接器性别 | HDR |
| 系列 | 319 | 产品子类型 | Headers |
