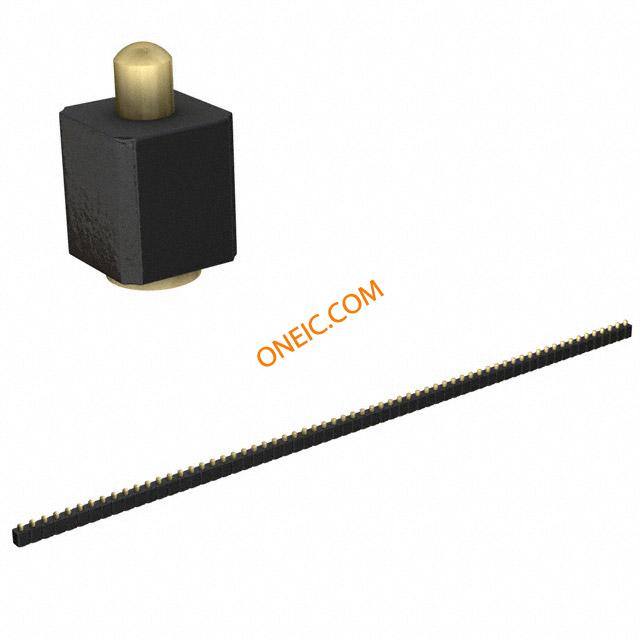

811-22-064-30-001101
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST SMD Bulk CONN SPRING CONT 64 POS .177 SMD Headers & Wire Housings 64P SINGLE ROW HDR PIN HEIGHT .177 |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 6 |
| 工厂包装数量 | 6 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 150 V | 开关功能 | Unlatched |
| 接触电阻 | 20 | 最大额定电流 | 3 A |
| 最小输入电压 | 150VDC|100VAC | ||
机械参数
| 深度 | 2.54 | 间距 | 0.100" (2.54mm) |
| 高度 | 4.5 | 材料（通用） | Copper Alloy |
| 包装方式 | Bulk | 端接方式 | Solder |
| 外壳颜色 | Black | 安装类型 | Surface Mount |
| 连接器类型 | Piston | 接触镀层 | Gold Over Nickel |
| 排数 | 1 | 触头材料 | Brass Alloy |
| 壳体材料 | Nylon 46 | 总长度 | 162.56 |
| 端接样式 | SMD | 第一触头极性 | Pin (Male) |
| 触点数 | 64 | 接触镀层厚度 | 20µin (0.51µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | 811 | 产品子类型 | Headers |
