15-24-6100
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | Mini-Fit BMI | Part # Aliases | 0015246100 A-42404-10A1 |
| Product Category | Headers & Wire Housings | Standard Package | 10 |
| Factory Pack Quantity | 440 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366930 |
Electrical
| Range deg/s | :MOLEX - Mini-Fit BMI 42404 Series | Voltage Rating | 600 V |
| Current Rating (Max) | 12 A, 7 A | ||
Mechanical
| Color | Natural | Pitch | 0.165" (4.20mm) |
| Weight | 0.4 | Packaging | Tray |
| Row Spacing | 0.165" (4.20mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Nylon | Termination Style | Through Hole |
| Number of Contacts | 10 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 10 | Contact Finish Thickness | 100µin (2.54µm) |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | Pin Header | Gender | :Header |
| Series | 42404 | Features | Board Lock |
| Product Type | Header Assemblies | Number of Positions Loaded | All |
Documents & Media
PDF Document
Similar Parts
0424741041
molex
$62.7210
Details
0039012105
molex
$2.5004
Details
0039012100
molex
$1.1805
Details
15-24-7100
molex
$13.7592
Details

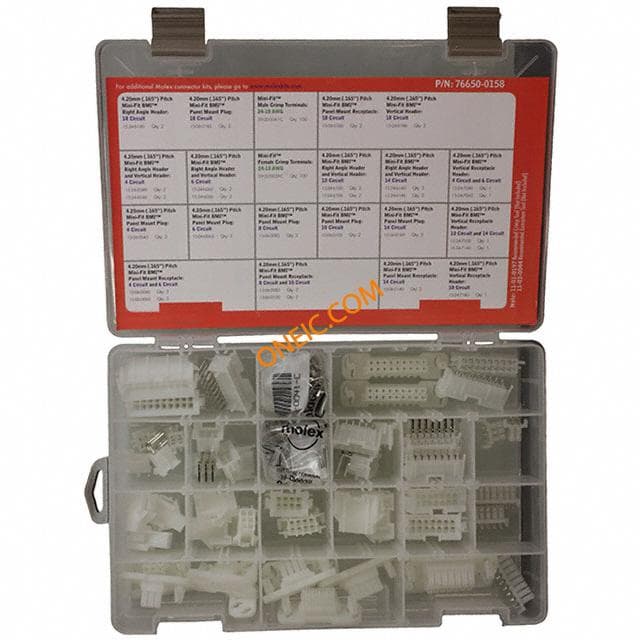

76650-0158
