点击放大查看
43020-1201
| Manufacturer | |
| Description | CONN PLUG 12POS 3MM VERT DUAL 3.0mm,MicroFit,plug,2row,freehang,12w Headers & Wire Housings 12CKT PLUG HSG DR Conn Housing PL 12 POS 3mm Crimp ST Bag MULTIPOLE CONNECTOR PLUG W/EARS; FREE HANGING; 12 CIRCUITS Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 12 路 直 公 压接连接器外壳 |
| Category |
Business
| Tradename | Micro-Fit 3.0 | Part # Aliases | 0430201201 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | Compliant | Tariff No | 85366910 |
Electrical
| Voltage Rating | 350 V | Current Rating (Max) | 5 A |
| Connector - Voltage Input | Male | ||
Mechanical
| Color | Black | Depth | 16.89mm |
| Pitch | 0.118" (3.00mm) | Width | 9.65mm |
| Weight | 0.00159 | Packaging | Bulk |
| Row Spacing | 0.118" (3.00mm) | Contact Type | Male Pin |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Housing Material | PBT | Color - Connectors | :Black |
| Number of Contacts | 12 | Contact Termination | Crimp |
| Number of Positions | 12 | ||
Product Info
| Note | Contacts Not Provided | Type | Plug Housing |
| Gender | Male | Series | 43020 |
| CAD Drawing | 3D CAD Model | Product Type | Wire Housings |
| Application Specifics | Power, Wire-to-Wire | For Use With/Related Products | Micro-Fit 3.0 Plug |
Documents & Media
Similar Parts
0430310012
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 26-30AWG GOLD
0430251200
molex
Conn Housing RCP 12 POS 3mm Crimp ST Cable Mount Bag Conn Housing F 12 POS 3mm Crimp ST Cable Mount Bag CONN RECEPT 12POS 3MM VERT DUAL Plug; wire-board; female; 3mm; PIN:12; w/o terminals; 5A; UL94V-0
0430310002
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; crimped
0430310007
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG TIN Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; tinned
0430310011
Molex, LLC
. 0430310011 - Pin Contact Gold 26-30 AWG Crimp Power from Molex. from now!
0430310001
Molex, LLC
. 0430310001 - Pin Contact Tin 20-24 AWG Crimp Power from Molex. from now!
0430310008
Molex, LLC
. 0430310008 - Pin Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0430310009
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Bag
0430310003
Molex, LLC
. 0430310003 - Pin Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0430310010
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 26-30AWG TIN
0430310004
Molex, LLC
. 0430310004 - Pin Contact Tin 26-30 AWG Crimp Power from Molex. from now!
43020-1201
Molex Connector Corporation
CONN PLUG 12POS 3MM VERT DUAL 3.0mm,MicroFit,plug,2row,freehang,12w Headers & Wire Housings 12CKT PLUG HSG DR Conn Housing PL 12 POS 3mm Crimp ST Bag MULTIPOLE CONNECTOR PLUG W/EARS; FREE HANGING; 12 CIRCUITS Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 12 路 直 公 压接连接器外壳
0430310006
Molex Inc
CONN PINS 26-30AWG 30GOLD CRIMP

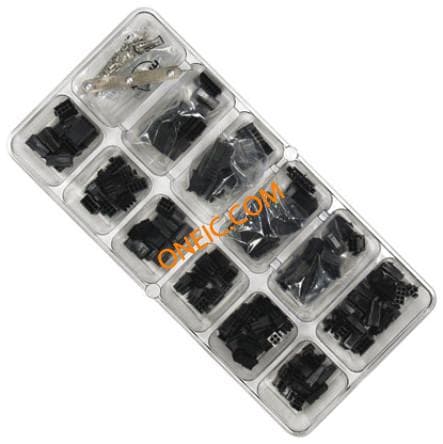

76650-3013
