点击放大查看

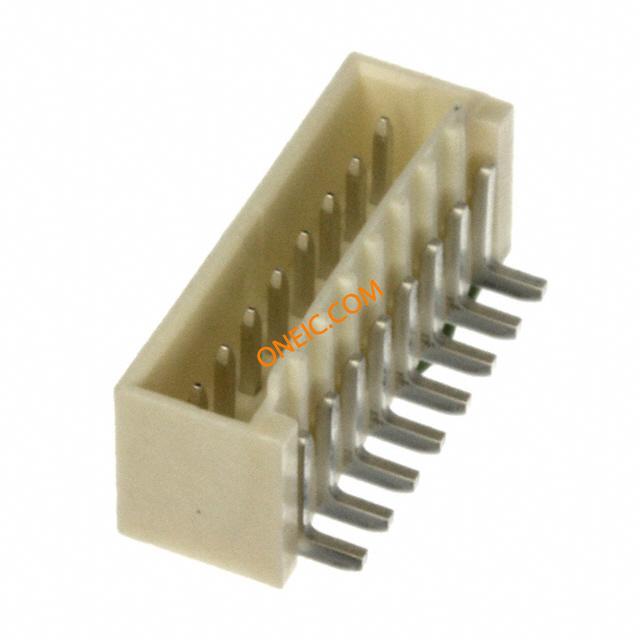

0874370843
| Manufacturer | |
| Description | Conn Shrouded Header HDR 8 POS 1.5mm Solder ST SMD Embossed T/R CONN HEADER 8POS 1.5MM VERT SMD |
商业参数
| 其他名称 | WM7667CT | 标准包装数量 | 1,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 40 | 最大额定电流 | 2.5/Contact |
| 最小输入电压 | 350V | ||
机械参数
| 颜色 | Beige | 深度 | 4.45 |
| 间距 | 0.059" (1.50mm) | 高度 | 5.75 |
| 包装方式 | Embossed Tape and Reel | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Beige |
| 安装类型 | Surface Mount | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 排数 | 1 |
| 触头材料 | Brass Alloy | 壳体材料 | Nylon |
| 总长度 | 13.3 | 触点数 | 8 |
| 位数 | 8 | 接触长度 - 配合 | 0.106" (2.70mm) |
| 接触镀层厚度 | 100µin (2.54µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
