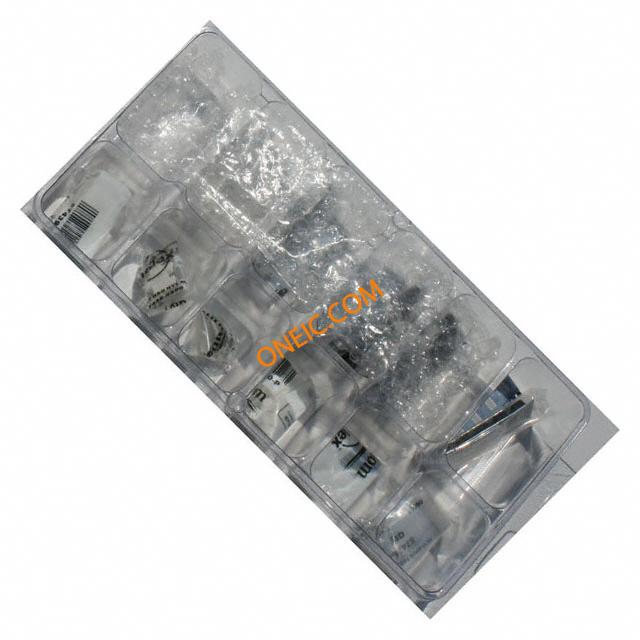

76650-0003
| Manufacturer | |
| Description | COMPONENT KITS, WIRE TO BOARD KIT 10,3,4,6,8POS 1.5-3A SURFACE MOUNT RECEPTACLE, RIGHT ANGLE HEADER, RIGHT ANGLE RECEPTACLE, VERTICAL (AND CAPPED) SMT HEADER, VERTICAL RECEPTACLE 1.5MM PITCH 30V 24-30 WIRE SIZE KIT CONN PICO-SPOX SERIES Headers & Wire Housings 1.5MM PICOSPOX KIT COMPONENT KITS, WIRE TO BOARD KIT 10,3,4,6,8POS 1.5-3A SURFACE MOUNT RECEPTACLE, RIGHT ANGLE HEADER, RIGHT ANGLE RECEPTACLE, VERTICAL (AND CAPPED) ... Kit Description:SMT Vertical and Right Angle Header and ReceptacleKit Category:Wire to Board Solution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:225 PICO-SPOX CONNECTOR KIT SMT VERT & RT ANGLE HEADER & RECEPT |
| Category |
商业参数
| 商标名 | Pico-SPOX | 标准包装规格 | 1 |
| 零件号别名 | 0766500003 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 30 V | 额定电压 | 30 V |
| 最大额定电流 | 1.5-3.0 A | ||
机械参数
| 间距 | 1.50 mm | 包装方式 | Plastic Box |
| 导线线规 | 30-24 | 行程角度 | Vertical/Right Angle |
| 连接器类型 | Receptacle and SMT Header | 安装样式 | Wire |
产品信息
| 系列 | 76650 | 值 | 215 pcs - Assorted 3, 4, 6, 8, 10 Circuit Header, Housing, 24 ~ 30 AWG Crimp Terminals |
| 套件类型 | Rectangular - Contact, Header, Housing | 制造商全称 | 76650 |
| 产品子类型 | Connector Kits | 配置 | Wire-to-Board |
