点击放大查看

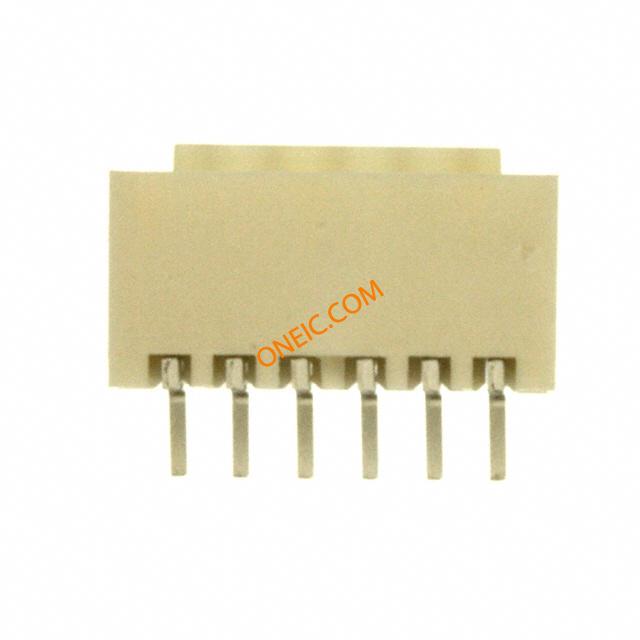

0874380643
| Manufacturer | |
| Description | Conn Shrouded Header HDR 6 POS 1.5mm Solder RA SMD Embossed T/R CONN HEADER 6POS 1.5MM R/A SMD |
| Category |
商业参数
| 其他名称 | WM7650CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 40 mohm | 最大额定电流 | 3/Contact A |
| 最小输入电压 | 350VAC | 最小供电电压 | 350VAC |
机械参数
| 颜色 | Beige | 深度 | 5.75 mm |
| 间距 | 1.5 mm | 高度 | 4.45 mm |
| 包装方式 | Embossed Tape and Reel | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Natural |
| 安装类型 | Surface Mount | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 安装样式 | Surface Mount |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 总长度 | 10.3 mm |
| 触点数 | 6 | 位数 | 6 |
| 接触长度 - 配合 | 0.106" (2.70mm) | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 105C | ||
