点击放大查看

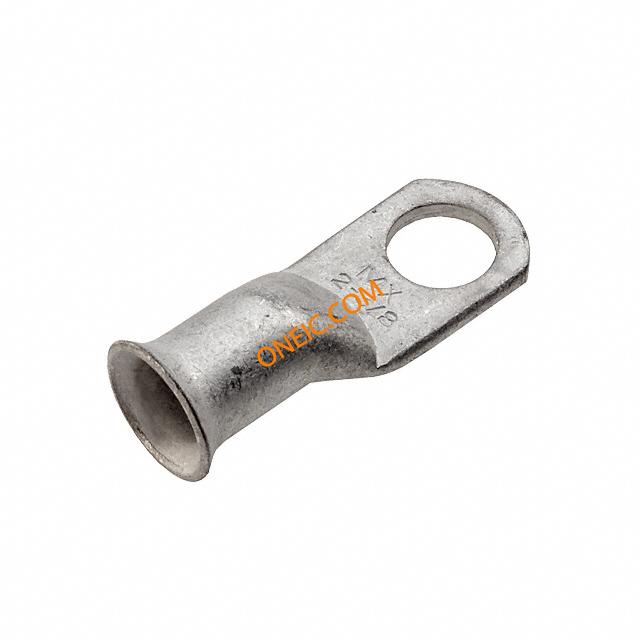

19221-0235
| Manufacturer | |
| Description | Terminals 2 AWG 3/8 STUD Battery Cable Lug CONN RING TONGUE TERM #3/8 2AWG BATTERYCABLELUGPLTD(BCL-238-PL)SPM |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Lug Terminals | 零件号别名 | 0192210235 BCL-238-PL |
| 产品类别 | Terminals | 标准包装数量 | 10 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 包装方式 | Bag | 厚度 | 0.095" (2.41mm) |
| 绝缘类型 | Not Insulated | 导线线规 | 2 |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 3/8 (M9) | 端子类型 | Flat Sided, Tubular |
| 接触镀层 | Tin | 触头材料 | Copper |
| 总长度 | 1.625" (41.28mm) | 端接样式 | Solderless |
| 外缘宽度 | 0.625" (15.88mm) | ||
产品信息
| 类型 | Battery Cable Lug, Closed Barrel | 连接器性别 | Female |
| 系列 | 19221 | 产品特性 | Heavy Duty |
Documents & Media
PDF Document
