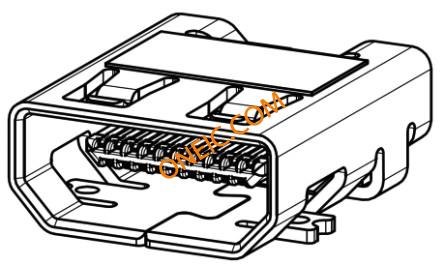

46765-0001
| Manufacturer | |
| Description | HDMI, Displayport & DVI Connectors Micro HDMI Recpt RA SMT Type D 19 Way Female Right Angle HDMI Connector 30V Conn Micro HDMI RCP 19 POS 0.4mm Solder RA SMD 19 Terminal 1 Port Embossed T/R CONN, MICRO HDMI-D, POLYIMIDE, SMT MICRO HDMI CONNECTOR, RCPT, 19WAY, PCB 19路 D 型 HDMI 直角 母, 30 V |
| Category |
商业参数
| 零件号别名 | 0467650001 | 产品类别 | HDMI, Displayport & DVI Connectors |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 30 V | 供电电压 | :HDMI 1.4 |
| 击穿电压 | :30V | 最大额定电流 | 0.8A |
| 最大触点电流 | :0.8A | 触点额定值 @ 电压 | 0.8 A |
机械参数
| 尺寸 | Type D | 深度 | :8mm |
| 宽度 | :7mm | 长度 | :3mm |
| 重量 | 0.001 | 包装方式 | Reel |
| 方向 | Right Angle | 端接方式 | Solder |
| 安装类型 | Right Angle | 连接器类型 | :Micro HDMI |
| 接触镀层 | Gold | 本体材料 | :Metal |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 端接样式 | SMD | 触点数 | 19 |
| 接触件端接 | :Surface Mount Right Angle | 第一连接器安装类型 | :PCB |
产品信息
| 连接器性别 | Female | 系列 | 46765 |
| 产品子类型 | Micro-HDMI | ||
环境参数
| 工作温度 | +85°C | ||
