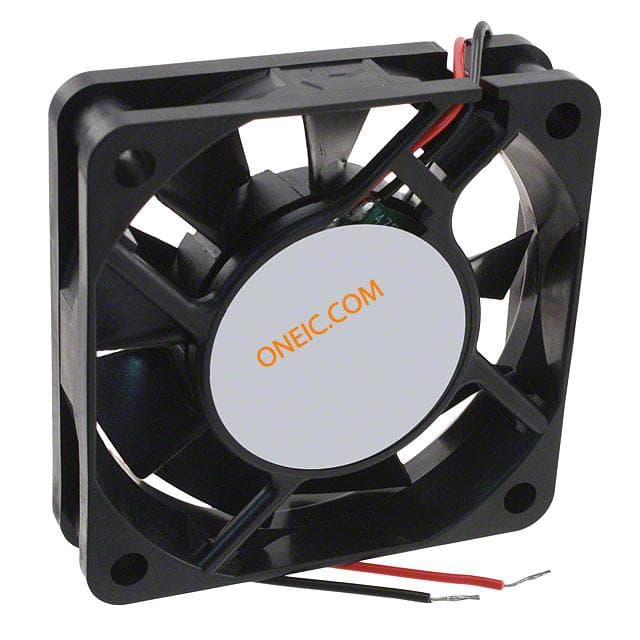

2406KL-05W-B50-L00
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 90 Days | Subcategory | Blowers and Fans |
| Standard Package | 150 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 84145920 |
| Rad Hardened | No | Material Flammability Rating | :UL 94V-0 |
Electrical
| Noise | 34 dB | Speed | Clockwise |
| Frequency | Not Required | Input Range | 10V to 27.6V |
| Range deg/s | :4600rpm | Noise Figure | 34 dB |
| Power (Watts) | 2.40W | Power - Rated | 2.4 W |
| Voltage Range | 10 ~ 27.6VDC | Voltage Rating | 24VDC |
| Current - Supply | 0.1 A | Voltage - Supply | :24VDC |
| Power Supply Type | :Wire Leaded | Current Rating (Max) | 0.100A |
| Power - Average Forward | :2.40W | ||
Mechanical
| RPM | 4600 RPM | Depth | 60 mm |
| Width | :60mm | Height | 15 mm |
| Weight | 0.099 lb (44.91g) | Air Flow | 18.3 CFM (0.518m³/min) |
| Diameter | Not Required mm | Fan Type | Tubeaxial |
| Material | :Plastic | Flow (CFM) | :0.52m³/min |
| Flow (SCFM) | :18.3cu.ft/min | Termination | 2 Wire Leads |
| Bearing Type | Ball | Height (Max) | :60mm |
| Terminal Type | :Flying Lead | Mounting Style | Flange |
| Pressure (PSI) | :51.2Pa | Static Pressure | 0.205 in H2O (51.2 Pa) |
| Housing Material | Plastic | Length - Overall | 60 mm |
| Material - Blade | Plastic | Material - Frame | Plastic |
| Size / Dimension | Square - 60mm L x 60mm H x 15mm W | Color - Connectors | :Black |
| Length - Lead Wire | :200mm | Material - Housing & Prism | :Plastic |
Product Info
| Type | DC Fan | Series | :2406KL |
| Function | :DC | ||
Environmental
| Rated Life | 70000 hrs @ 25°C | Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Operating Temperature - Junction | 60C | ||
Documents & Media
PDF Document
Online Document
PDF Document
PDF Document
PDF Document
