点击放大查看

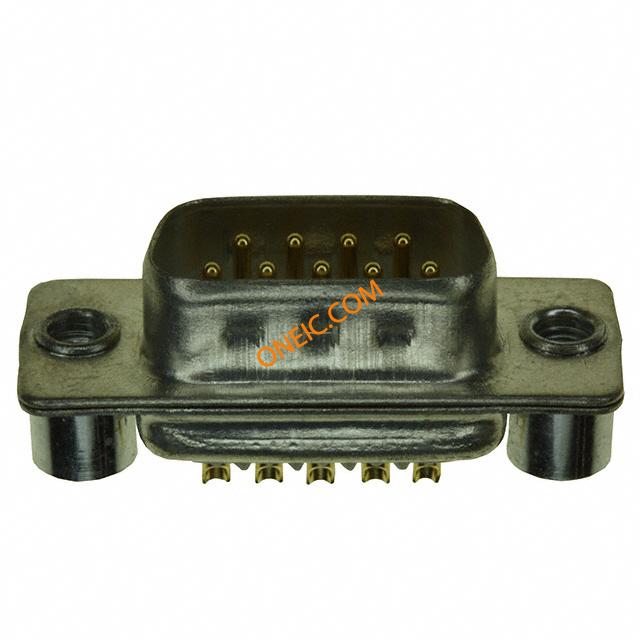

172-009-102R021
| Manufacturer | |
| Description | CONN DB9 MALE SOLDER CUP TIN D-Sub Standard Connectors 9POS Male 5A Steel |
| Category |
商业参数
| 商标名 | M-SERIES | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 45 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 5A | ||
机械参数
| 颜色 | Beige | 包装方式 | Tray |
| 绝缘类型 | Insulated | 端接方式 | Solder Cup |
| 触头类型 | Signal | 安装类型 | Free Hanging (In-Line); Panel Mount |
| 外壳镀层 | Tin | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Board Side (4-40) |
| 安装样式 | Panel | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 触头材料 | Brass | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | Solder | 触点数 | 9 |
| 绝缘材料 - 类型 | Thermoplastic, Glass-Filled | 位数 | 9 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 连接器性别 | Male | 系列 | 172 |
| 产品特性 | Grounding Indents | ||
环境参数
| 工作温度 | -50°C ~ 100°C | ||
