点击放大查看

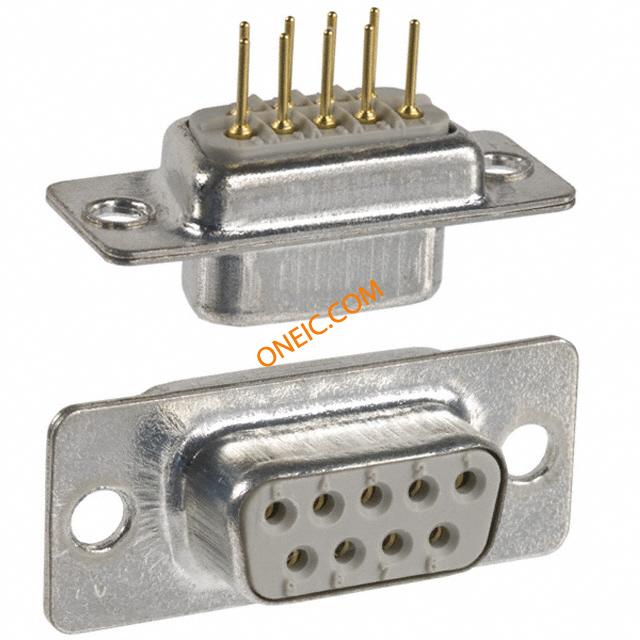

172-009-212R001
| Manufacturer | |
| Description | CONN DB9 FEMALE DIP SOLDER TIN D-Sub Standard Connectors 9POS Female 5A Steel |
| Category |
商业参数
| 商标名 | M-SERIES | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 5A | ||
机械参数
| 颜色 | Beige | 包装方式 | Tray |
| 绝缘类型 | Insulated | 端接方式 | Solder |
| 触点形式 | Signal | 触头类型 | Signal |
| 安装类型 | Through Hole | 外壳镀层 | Tin |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Panel |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate (PBT), Polyester | 端接样式 | Solder |
| 触点数 | 9 | 绝缘材料 - 类型 | Thermoplastic, Glass-Filled |
| 位数 | 9 | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 连接器性别 | Female | 系列 | 172 |
| 输出配置 | Through Hole | ||
环境参数
| 工作温度 | -50°C ~ 100°C | ||
Documents & Media
