.jpg)
点击放大查看

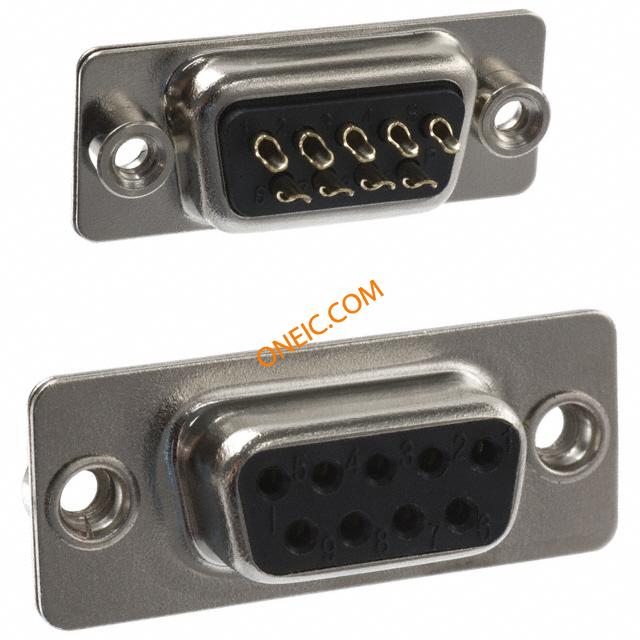

171-009-203L011
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P Female Solder Cup w/ Clinch Nut 1 CONN DB9 FEMALE SLD CUP NICKEL |
| Category |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | 80 |
| 工厂包装数量 | 80 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 500 VAC | 最大额定电流 | 5 A |
机械参数
| 颜色 | Black | 包装方式 | Tray |
| 端接方式 | Solder Cup | 触头类型 | Signal |
| 安装类型 | Free Hanging (In-Line); Panel Mount | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Board Side (4-40) | 安装样式 | Wire |
| 排数 | 2 | 连接器样式 | D-Sub |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Solder |
| 触点数 | 9 | 位数 | 9 |
| 外壳材料及表面处理 | Steel, Nickel Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 连接器性别 | Female | 系列 | 171 |
| 产品特性 | Grounding Indents | ||
环境参数
| 工作温度 | -50°C ~ 100°C | ||
Documents & Media
相关型号
.jpg&w=3840&q=75)
171-009-103L001
NorComp
D-Sub Standard Connectors 9P MALE SOLDER CUP CONN DB9 MALE SOLDER CUP NICKEL
183-009-113R531
NorComp
D-Sub Standard Connectors 9P MALE RIGHT ANGLE .590 FOOTPRINT CONN DB9 MALE .590" R/A NICKEL
171-009-102L001
NorComp
D-Sub Standard Connectors 9P Male CONN DB9 MALE SOLDER CUP TIN
182-009-113R531
NorComp
D-Sub Standard Connectors 9P MALE RIGHT ANGLE .318 FOOTPRINT CONN DB9 MALE .318" R/A NICKEL D-SUB, PLUG, SOLDER, RIGHT ANGLE, 9WAY
183-009-113R171
NorComp
D-Sub Standard Connectors 9P Male R/A ground straps 4-40 inserts CONN DB9 MALE .590" R/A NICKEL
.jpg&w=3840&q=75)
171-009-113R001
NorComp
D-Sub Standard Connectors 9P MALE VERTICAL DIP SOLDER CONN DB9 MALE DIP SOLDER NICKEL
170-009-173L000
NorComp
D-Sub Standard Connectors 9P MALE CRIMP POKE NICKEL SHELL CONN DB9 CRIMP MALE NICKEL D-SUB SHELL, DB9, CRIMP, PLUG, 9WAY
172-009-183L001
NorComp
D-Sub Standard Connectors 9P Male CONN DB9 MALE HI PROFILE NKL
172-009-142R001
NorComp
D-Sub Standard Connectors 9P MALE WIRE TO WIRE CONN DB9 MALE WIRE WRAP TIN
182-009-113R171
NorComp
D-Sub Standard Connectors 9P Male R/A ground straps 4-40 inserts CONN DB9 MALE .318" R/A NICKEL D-SUB, PLUG, SOLDER, RIGHT ANGLE, 9WAY
183-009-113R161
NorComp
D-Sub Standard Connectors 9P Male R/A inside ground straps CONN DB9 MALE .590" R/A NICKEL

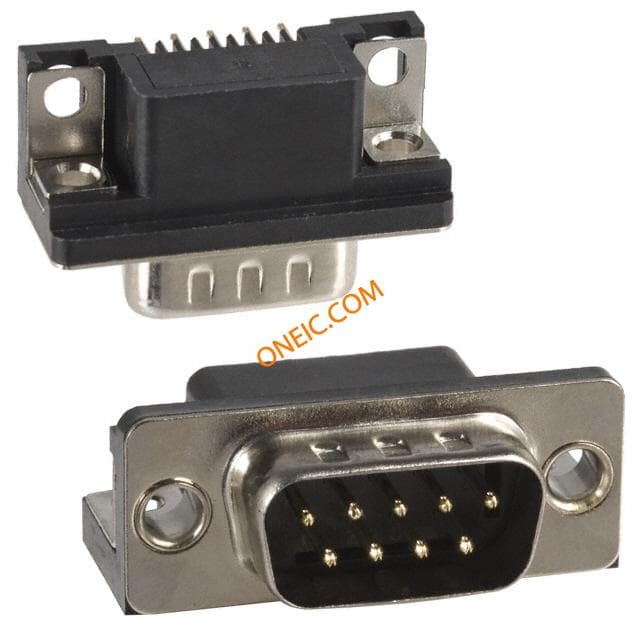

182-009-113R161
