点击放大查看

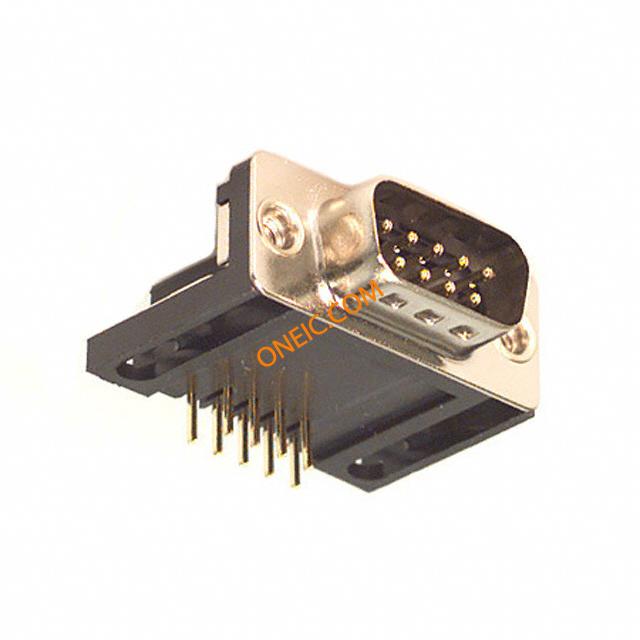

183-009-113R171
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P Male R/A ground straps 4-40 inserts CONN DB9 MALE .590" R/A NICKEL |
| Category |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | 90 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | Black | 包装方式 | Tray |
| 端接方式 | Solder | 触头类型 | Signal |
| 安装类型 | Through Hole, Right Angle | 外壳镀层 | Nickel |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (4-40) | 安装样式 | Through Hole |
| 排数 | 2 | 连接器样式 | D-Sub |
| 壳体材料 | Polyamide (PA9T), Nylon 9T | 端接样式 | Solder |
| 触点数 | 9 | 位数 | 9 |
| 外壳材料及表面处理 | Steel, Nickel Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 连接器性别 | Male | 系列 | 183 |
| 产品特性 | Ground Strap, Grounding Indents | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
