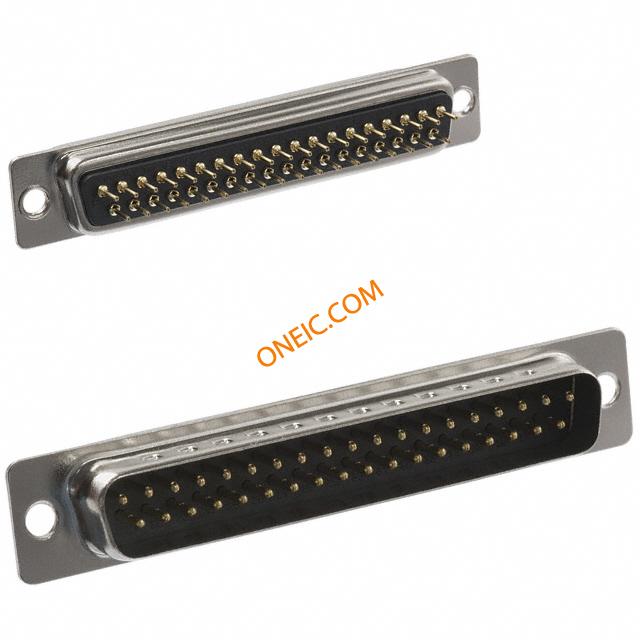

171-037-113R001

点击放大查看

171-037-113R001

Category

Connector SolutionsD-Sub ConnectorsD-Sub Connectors

对参数有疑问？问 AI 助手

Business

Product Category	D-Sub Standard Connectors	Standard Package	40
Factory Pack Quantity	40

Compliance

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85369010

Electrical

Range deg/s

:NORCOMP - 171 Series

Current Rating (Max)

5 A

Mechanical

Color	Black	Weight	0.0123
Packaging	Tray	Shell Size	:DC
Termination	Solder	Contact Type	Signal
Mounting Type	Through Hole	Shell Plating	Nickel
Connector Type	Plug, Male Pins	Contact Finish	Gold
Flange Feature	Housing/Shell (Unthreaded)	Mounting Style	Through Hole
Number of Rows	2	Connector Style	D-Sub
Material - Body	:Steel	Housing Material	Polyamide (PA9T), Nylon 9T
Termination Style	Solder	Number of Contacts	37
Contact Termination	:Solder	Number of Positions	37
Shell Material, Finish	Steel, Nickel Plated	Contact Finish Thickness	Flash
Shell Size, Connector Layout	4 (DC, C)

Product Info

Gender	Male	Series	:171
Features	Grounding Indents

Environmental

Operating Temperature

-50°C ~ 100°C

Documents & Media

Archive

171-037-113Rzzz.stp

PDF Document

171-yyy-113Ryy1

PDF Document

Backshell Reference Guide

PDF Document

171-YYY-113RYY1.pdf
