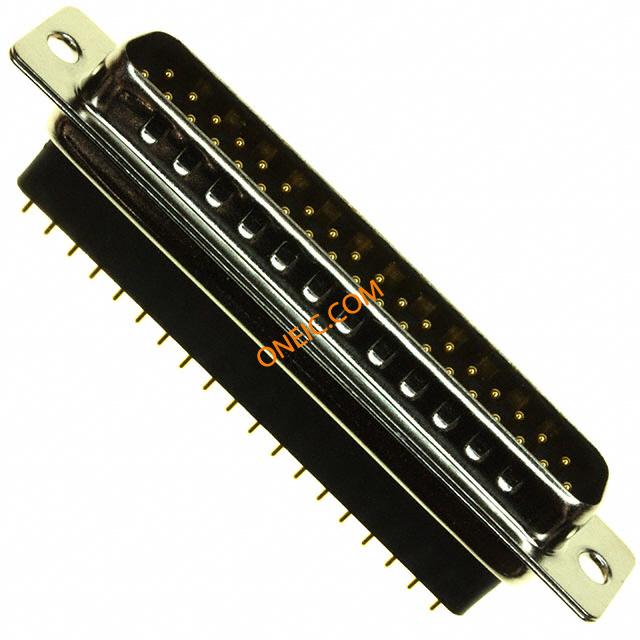

172-037-183L001
| Manufacturer | |
| Description | D-Sub Standard Connectors 37P Male CONN DB37 MALE HIGH PROFILE NKL |
| Category |
商业参数
| 商标名 | M-SERIES | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 5A | ||
机械参数
| 包装方式 | Tray | 端接方式 | Solder |
| 触头类型 | Signal | 安装类型 | Through Hole |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 排数 | 2 |
| 连接器样式 | D-Sub | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 位数 | 37 | 外壳材料及表面处理 | Steel, Nickel Plated |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 4 (DC, C) |
产品信息
| 产品特性 | Grounding Indents | ||
环境参数
| 工作温度 | -50°C ~ 125°C | ||
