点击放大查看

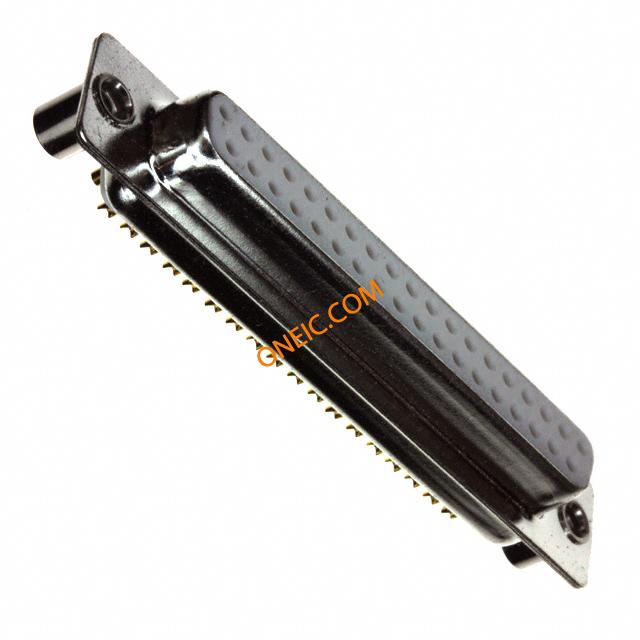

172-E37-202-021
| Manufacturer | |
| Description | D-Sub Standard Connectors 37 POS. SO./CUP FEM. .250 NUTS B/S CONN DB37 FEMALE SLD CUP TIN |
| Category |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | 30 |
| 工厂包装数量 | 30 | ||
合规参数
| RoHS | No | ||
电气参数
| 最大额定电流 | 5 A | ||
机械参数
| 包装方式 | Tray | 端接方式 | Solder Cup |
| 触头类型 | Signal | 安装类型 | Vertical |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Board Side (4-40) |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Solder |
| 触点数 | 37 | 位数 | 37 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 连接器性别 | Female | 系列 | 172 |
环境参数
| 机械寿命 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | 工作温度 | -50°C ~ 100°C |
