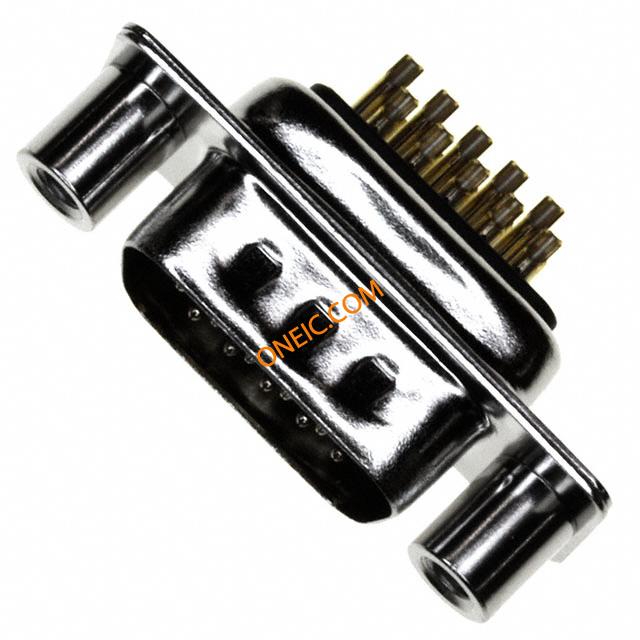

180-015-103L031
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P Male Solder Cup w/ Clinch Nut 3 CONN DB15 MALE HD SLD CUP NICKEL |
| Category |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | 80 |
| 工厂包装数量 | 80 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 500 VAC | 最大额定电流 | 2 A |
机械参数
| 包装方式 | Tray | 端接方式 | Solder Cup |
| 触头类型 | Signal | 安装类型 | Free Hanging (In-Line); Panel Mount |
| 外壳镀层 | Nickel | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Mating Side (4-40) |
| 安装样式 | Wire | 排数 | 3 |
| 连接器样式 | D-Sub, High Density | 壳体材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 端接样式 | Solder | 触点数 | 15 |
| 位数 | 15 | 外壳材料及表面处理 | Steel, Nickel Plated |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 1 (DE, E) High Density |
产品信息
| 连接器性别 | Male | 系列 | 180 |
| 产品特性 | Grounding Indents, Shielded | ||
环境参数
| 工作温度 | -50°C ~ 100°C | ||
