978-009-010R031
| Manufacturer | |

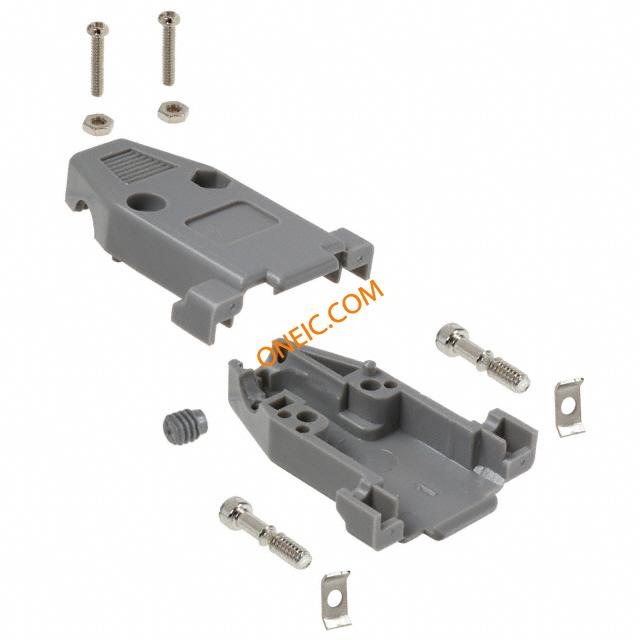

| Description | D-Sub Backshells 9P TOP ENTRY GREY PLASTIC BACKSHELL DB9 GREY PLASTIC |
| Category |
商业参数
| 产品类别 | D-Sub Backshells | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 HB |
机械参数
| 颜色 | Gray | 材料（通用） | ABS |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 出线方向 | 180° | 电缆类型 | Round |

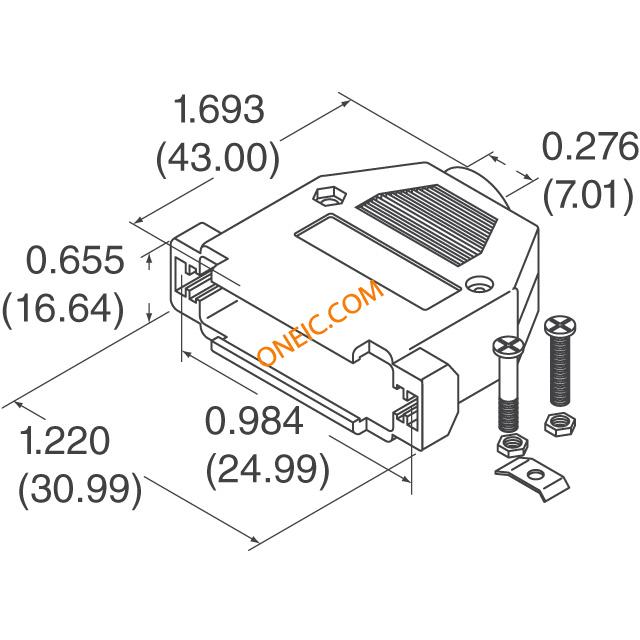

| 外壳镀层 | Plastic | 电缆直径 | 7.01 mm |
| 电缆端类型 | Straight | 外壳材料（壳体） | Acrylonitrile Butadiene Styrene (ABS) |
| 位数 | 9 | 电缆对数 | 1 |
产品信息
| 类型 | Strain Relief Backshell | 系列 | 978 |
| 产品特性 | Mating Screws 4-40, Sealed | 硬件配件 | Assembly Hardware, Strain Relief |
| 附件类型 | Two Piece Backshell | ||
Documents & Media
相关型号
172-E09-203R031
NorComp
D-Sub Standard Connectors 9P FEMALE SODR CUP .250 NUTS M/S CONN DB9 FEMALE SOLDER CUP NKL
172-E09-103R001
NorComp
D-Sub Standard Connectors 9P MALE SOLDER CUP CONN DB9 MALE SOLDER CUP NKL CONNECTOR, D-SUB, PLUG, SOLDER, 9WAY
180-015-273L000
NorComp
D-Sub High Density Connectors 15P FEM CRIMP POKE NICKEL SHELL CONN DB15 FEMALE HD CRIMP NICKEL D-SUB SHELL, DB15, CRIMP, RECPT, 15WAY
170-009-272L000
NorComp
D-Sub Standard Connectors 9P Female CONN DB9 CRIMP FEMALE TIN
171-009-203L001
NorComp
D-Sub Standard Connectors 9P FEMALE SOLDER CUP CONN DB9 FEMALE SLD CUP NICKEL
.jpg&w=3840&q=75)
171-009-102L001
NorComp
D-Sub Standard Connectors 9P Male CONN DB9 MALE SOLDER CUP TIN
170-009-273L000
NorComp
D-Sub Standard Connectors 9P FEMALE CRIMP POKE NICKEL SHELL CONN DB9 CRIMP FEMALE NICKEL D-SUB SHELL, DB9, CRIMP, RECPT, 9WAY
172-E09-203R001
NorComp
D-Sub Standard Connectors 9P FEMALE SOLDER CUP CONN DB9 FEMALE SOLDER CUP NKL CONNECTOR, D-SUB, RECPT, SOLDER, 9WAY
170-009-172L030
NorComp
D-Sub Standard Connectors 9P Male CONN DB9 CRIMP MALE TIN
171-009-203L031
NorComp
D-Sub Standard Connectors 9P Female Solder Cup w/ Clinch Nut 3 CONN DB9 FEMALE SLD CUP NICKEL
.jpg&w=3840&q=75)
180-015-203L031
NorComp
D-Sub High Density Connectors 15P Fem Solder Cup w/ Clinch Nut 3 CONN DB15 FEML HD SLD CUP NICKEL
180-015-272L030
NorComp
D-Sub High Density Connectors 15P Female CONN DB15 FEMALE HD CRIMP TIN
172-E09-102R031
NorComp
D-Sub Standard Connectors 9P Male CONN DB9 MALE SOLDER CUP TIN
180-015-273L030
NorComp
D-Sub High Density Connectors 15P Female Crimp w/ Clinch Nut 3 CONN DB15 FEMALE HD CRIMP NICKEL
172-E09-202R031
NorComp
D-Sub Standard Connectors 9P Female CONN DB9 FEMALE SOLDER CUP TIN
172-009-102R001
Norcomp Inc.
CONN DB9 MALE SOLDER CUP TIN D-Sub Standard Connectors 9POS Male 5A Steel
172-009-102R031
Norcomp Inc.
CONN DB9 MALE SOLDER CUP TIN D-Sub Standard Connectors 9POS Male 5A Steel
172-009-202R001
Norcomp Inc.
CONN DB9 FEMALE SOLDER CUP TIN D-Sub Standard Connectors 9POS Female 5A Steel

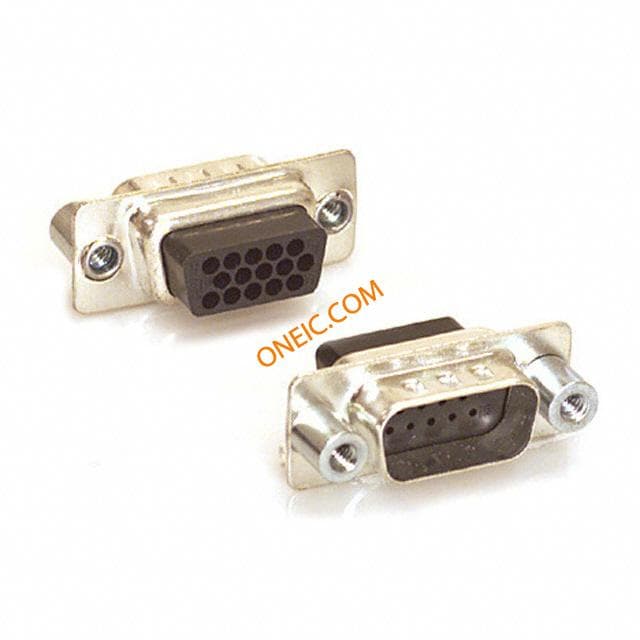

180-015-172-030
Norcomp Inc.
CONN DB15 MALE HD CRIMP TIN

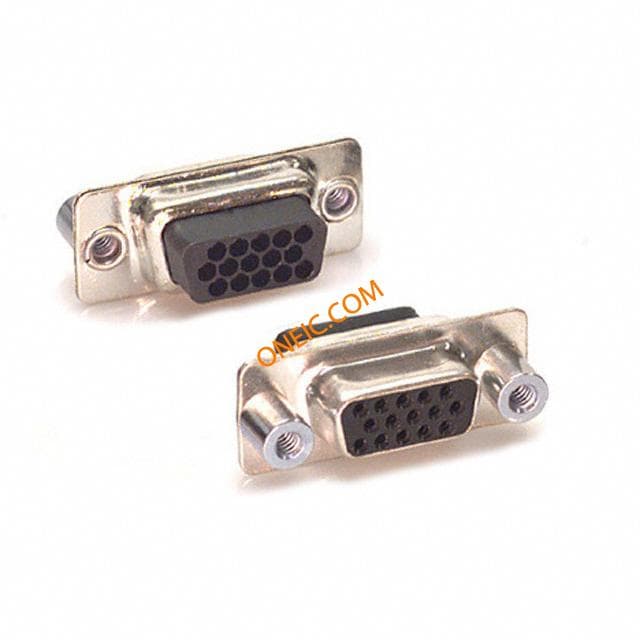

180-015-272-030
